Pentagon Shaped Titanium "MTB" Downtube .9mm (Copy)

Purchased from TiCycles; Titanium "MTB" Downtube

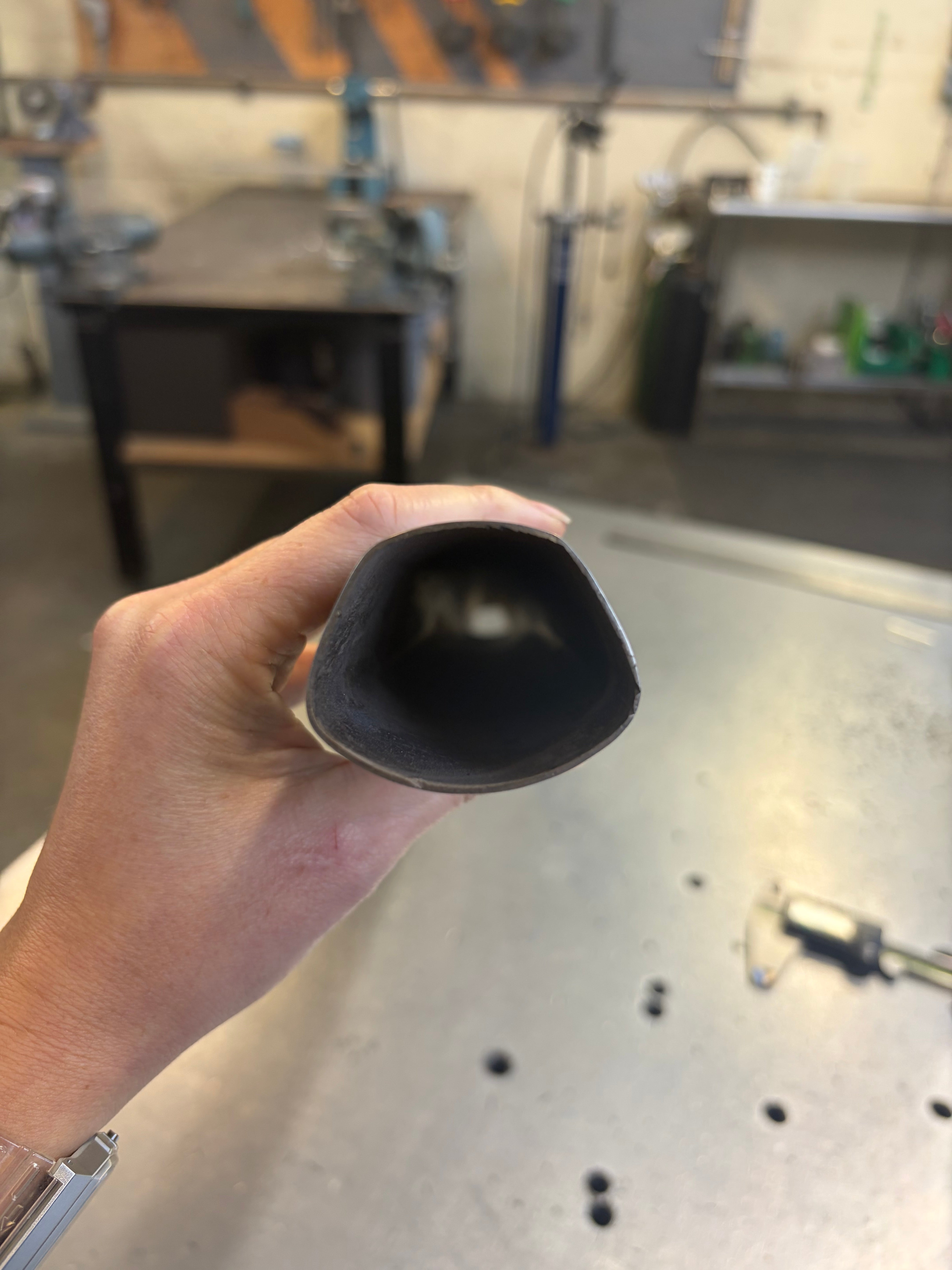

Titanium .9 Straight gauge wall thickness with a general "Bi-oval", out-of-phase taper from a Trapezoid to a Pentagon. Tube is also kinked for fork clearance at the headtube(presumably). Has some Mandrel marks that seem clean-able.

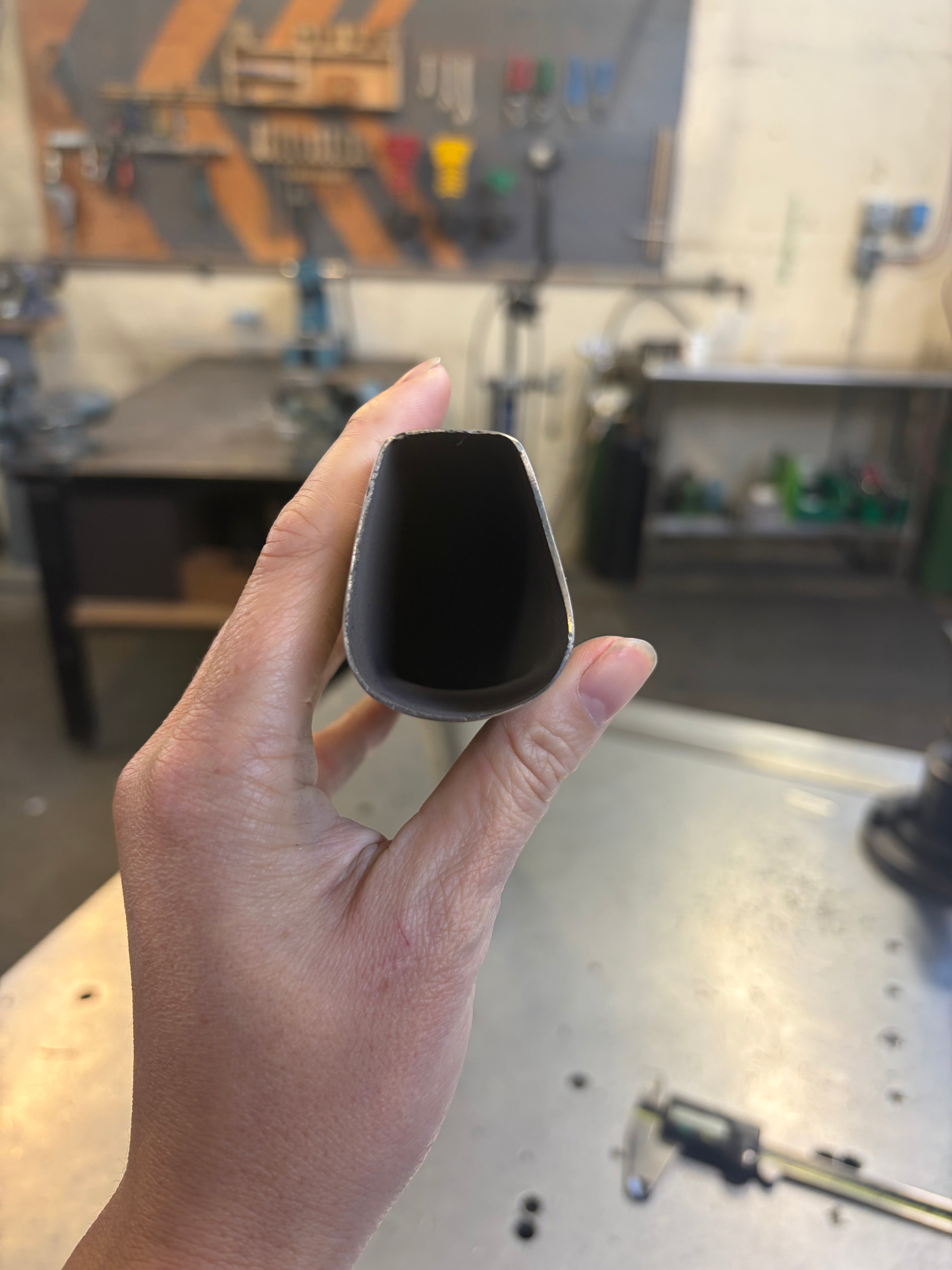

Trapezoid ~260mm to taper (inc. bend)

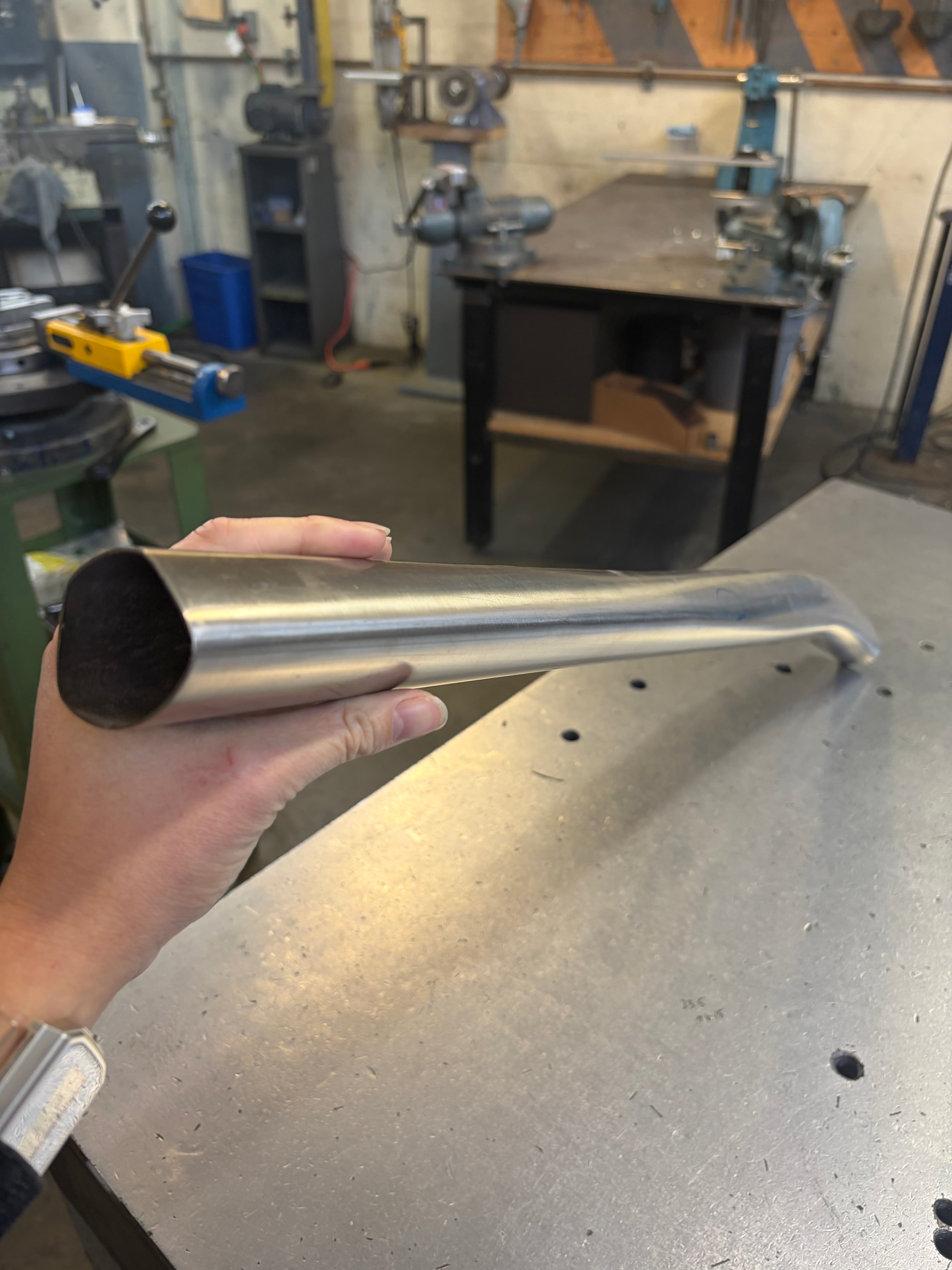

Pentagon 190mm to taper

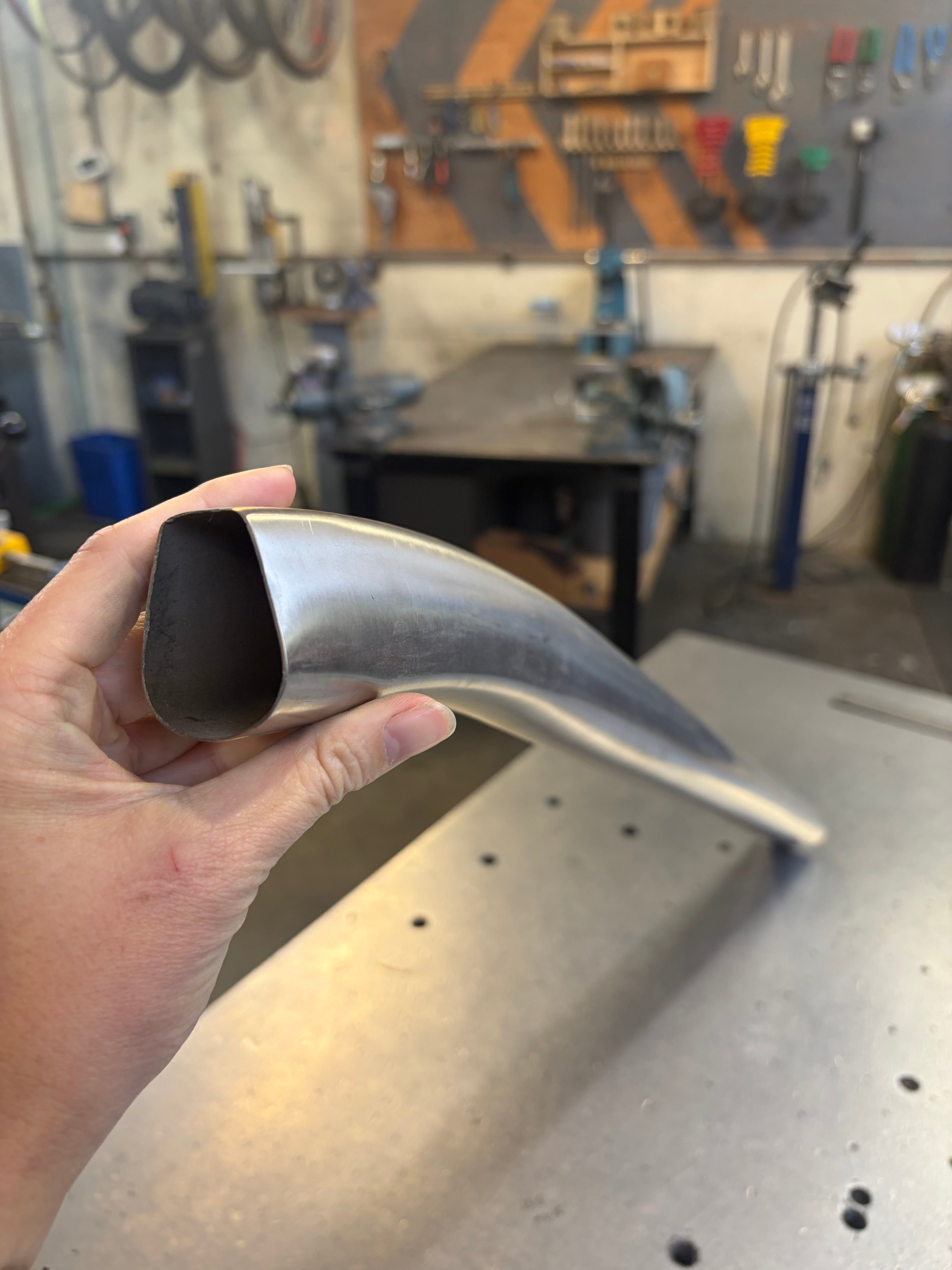

Bend is located 50mm from the Trapezoid end and is a pretty soft radius that lasts ~100mm

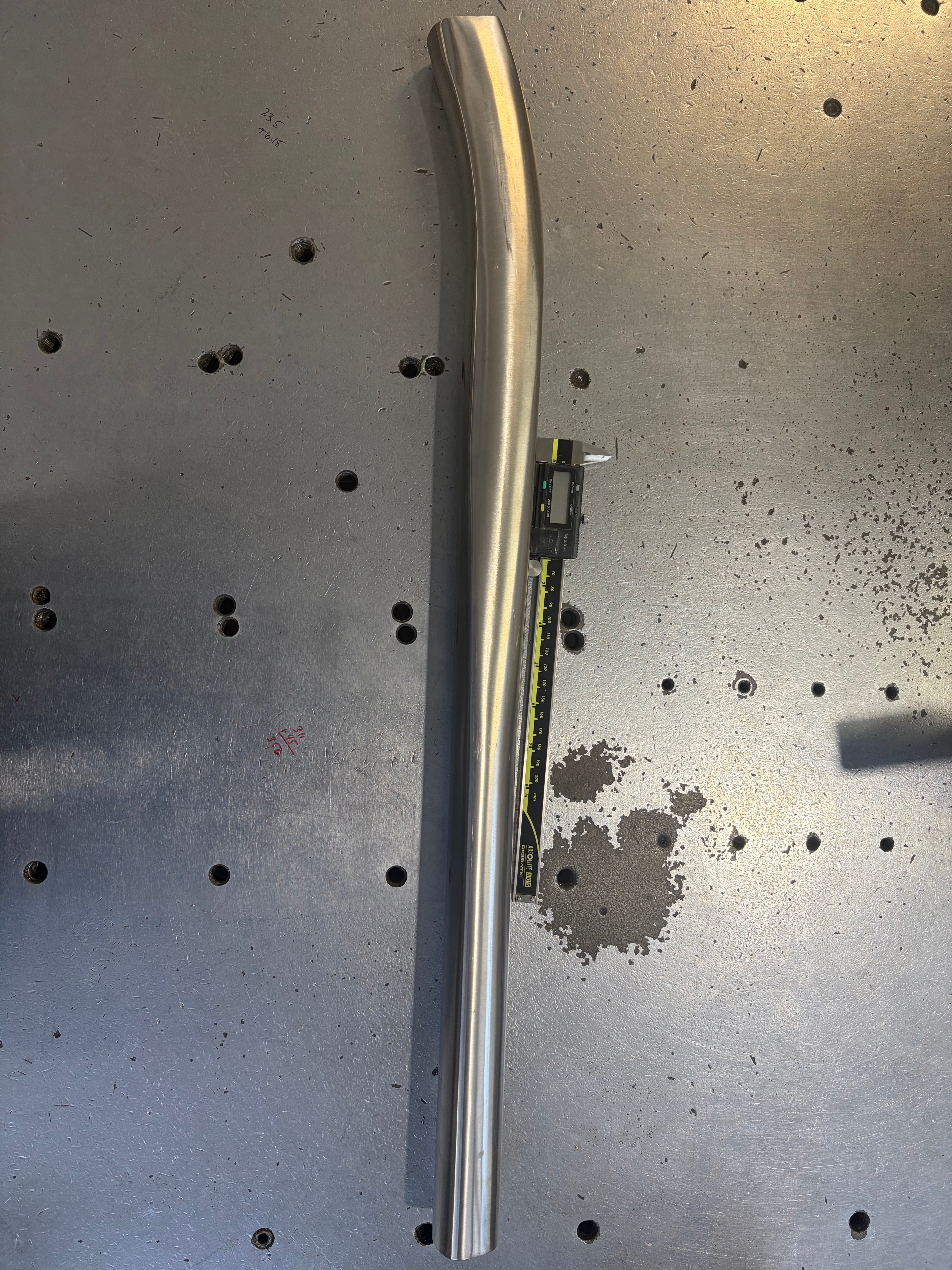

Tube total length is 710mm
