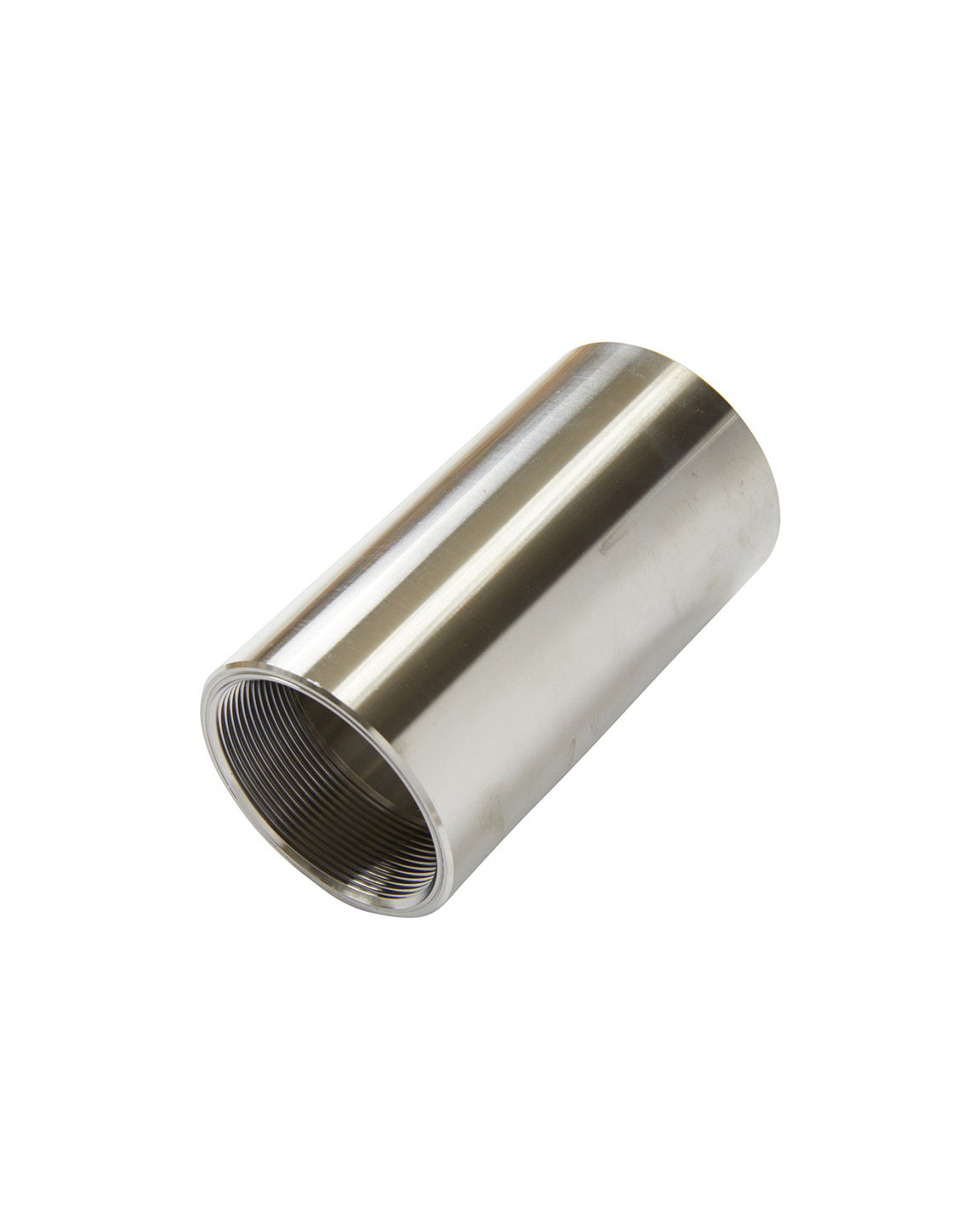

BB Shell, Titanium, BSA, 1-9/16" (39.7) OD, Select Width

Paragon
From $58.95 USD
Details

Material: 1-5/8" x .151" wall 3/2.5 titanium tubing

OD: 1.562"

Width: Supplied 0.5 mm oversize to allow for clean up after welding

Relief: On the inside diameter to 1.385"/1.395"

Threads:

  • 1.370"-24, right and left hand; compatible with all modern threaded bottom bracket spindles
  • Thread length = 0.50"
  • Left hand thread is identified by a radial groove on the face of the shell
  • Minor diameter = 1.330"/1.340"

Item sold individually.
Technical Info

Material:
1-5/8" x .151" wall 3/2.5 titanium tubing.

OD:
1.625"

Width:
Supplied 0.5 mm oversize to allow for clean up after welding.

Relief:
On the inside diameter to 1.385"/1.395".

Threads:
1.370"-24, right and left hand; compatible with all modern threaded bottom brackets.
Thread length = 0.50".
Left hand thread is identified by a radial groove on the face of the shell.
Minor diameter = 1.330"/1.340".
View Full Details
