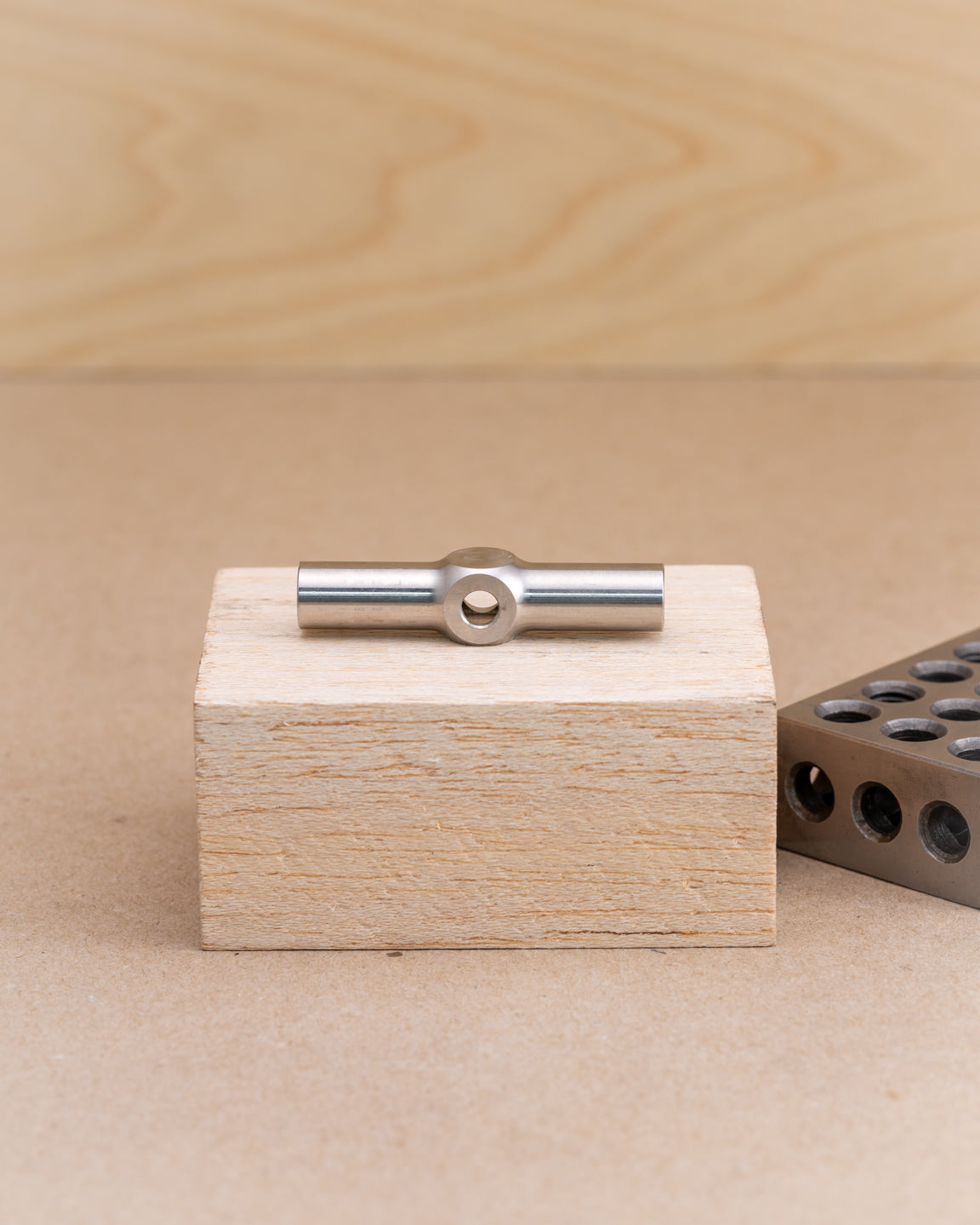

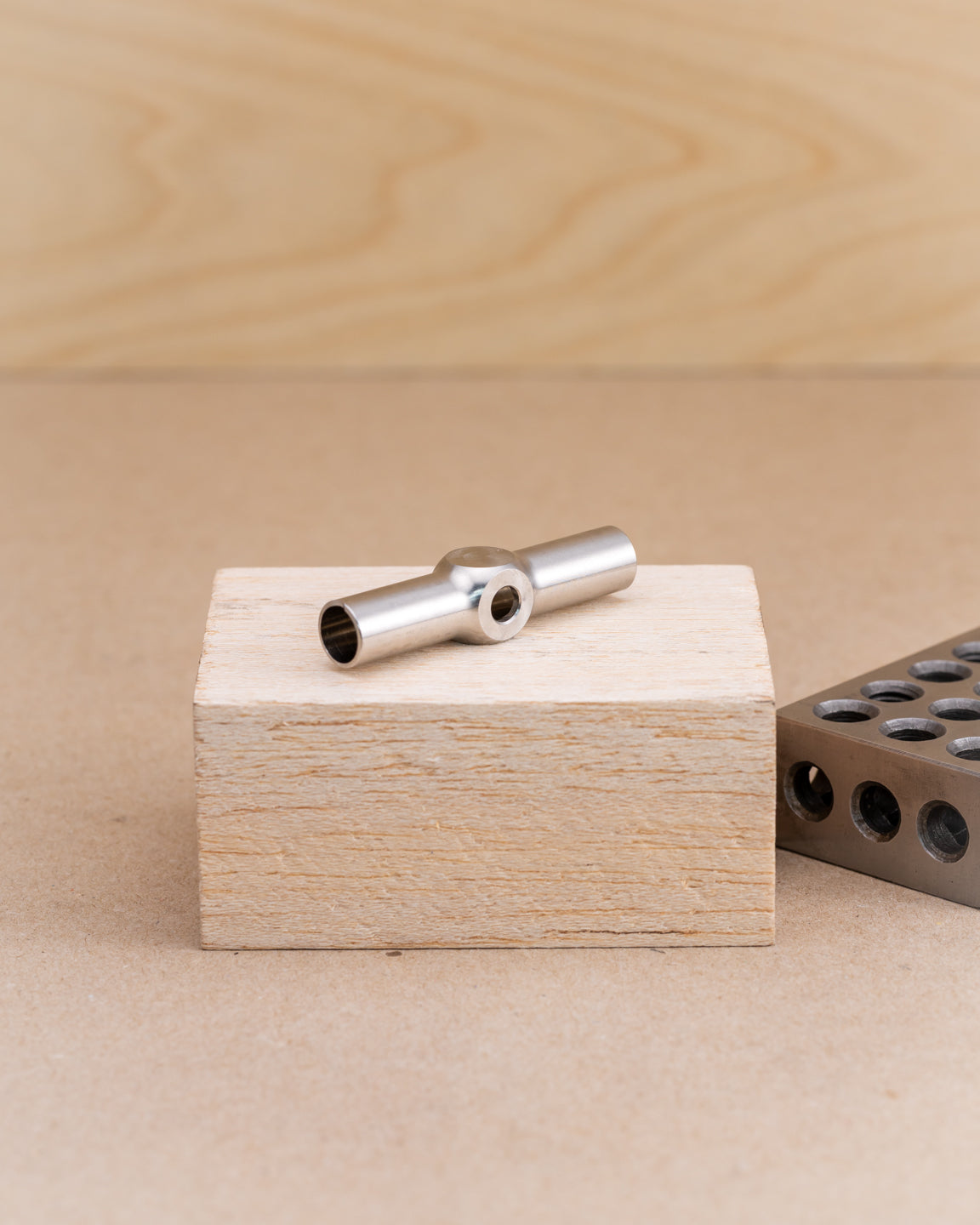

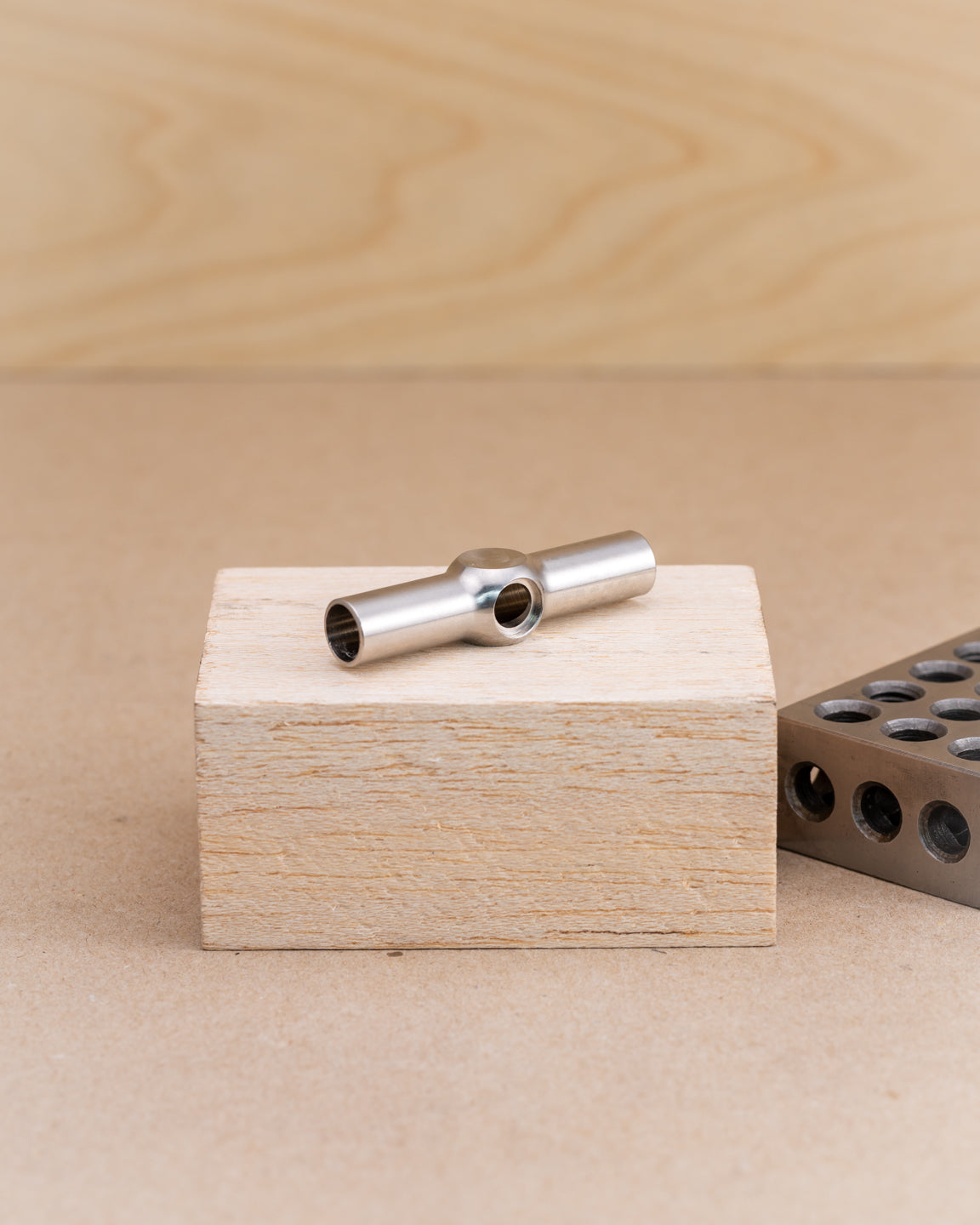

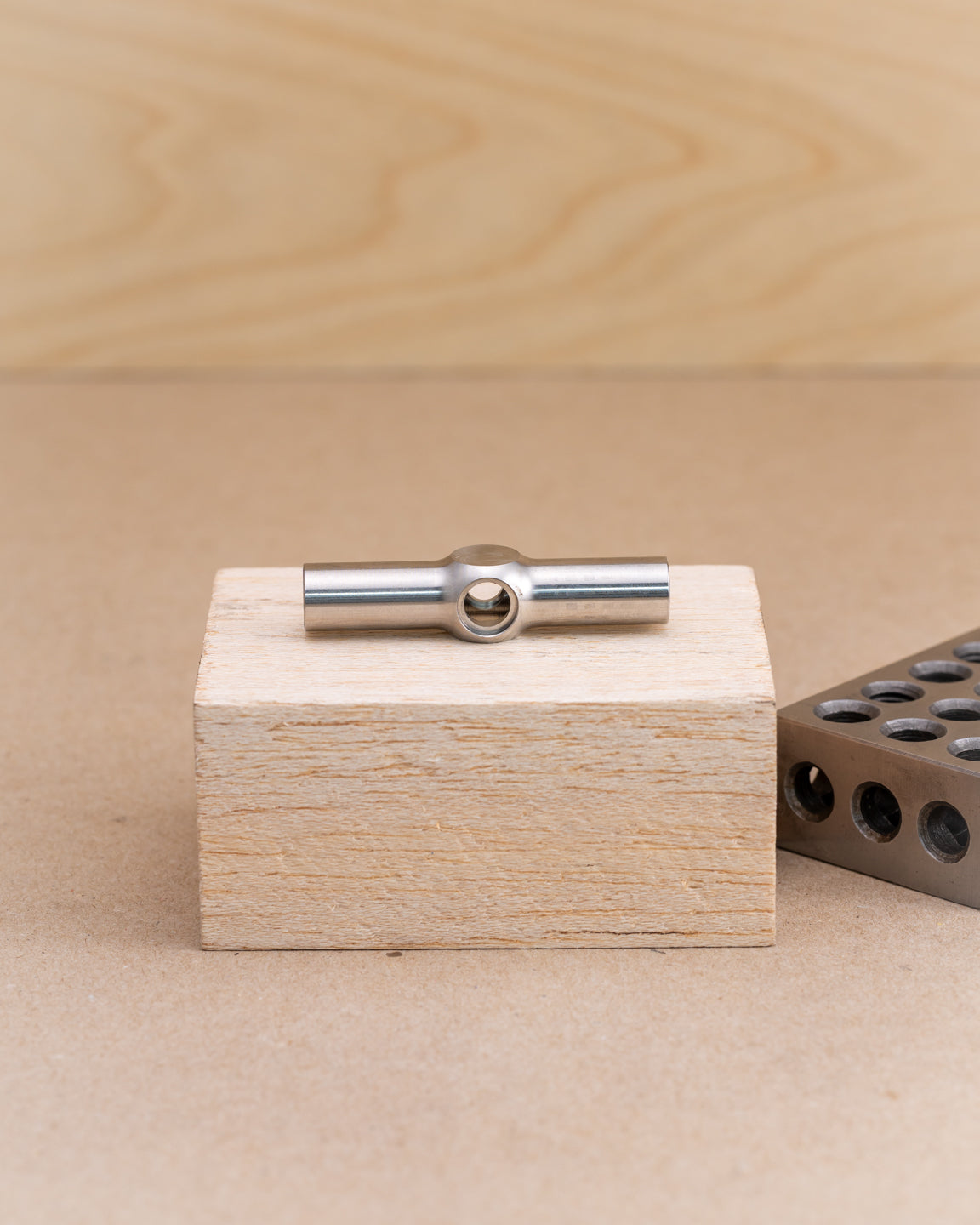

Paragon Brake Bridge, Stainless, 64mm Wide

Paragon  #BK1003
$37.95 USD
10+ in stock
Technical Info

Material: 304 stainless steel

Application: Road caliper brakes. The center is an 18.8 mm ball, drilled through 6.35 mm and counter bored for a recessed brake mounting nut

OD: 12 mm, both ends

ID: 10 mm, both ends

Width: 64 mm

Thread: The steel post has a M10 x 1.5 external thread to fit the boss, and a M6 x 1 internal thread for the brake mounting bolt

Miter: Both ends are cut square and must be mitered to fit
