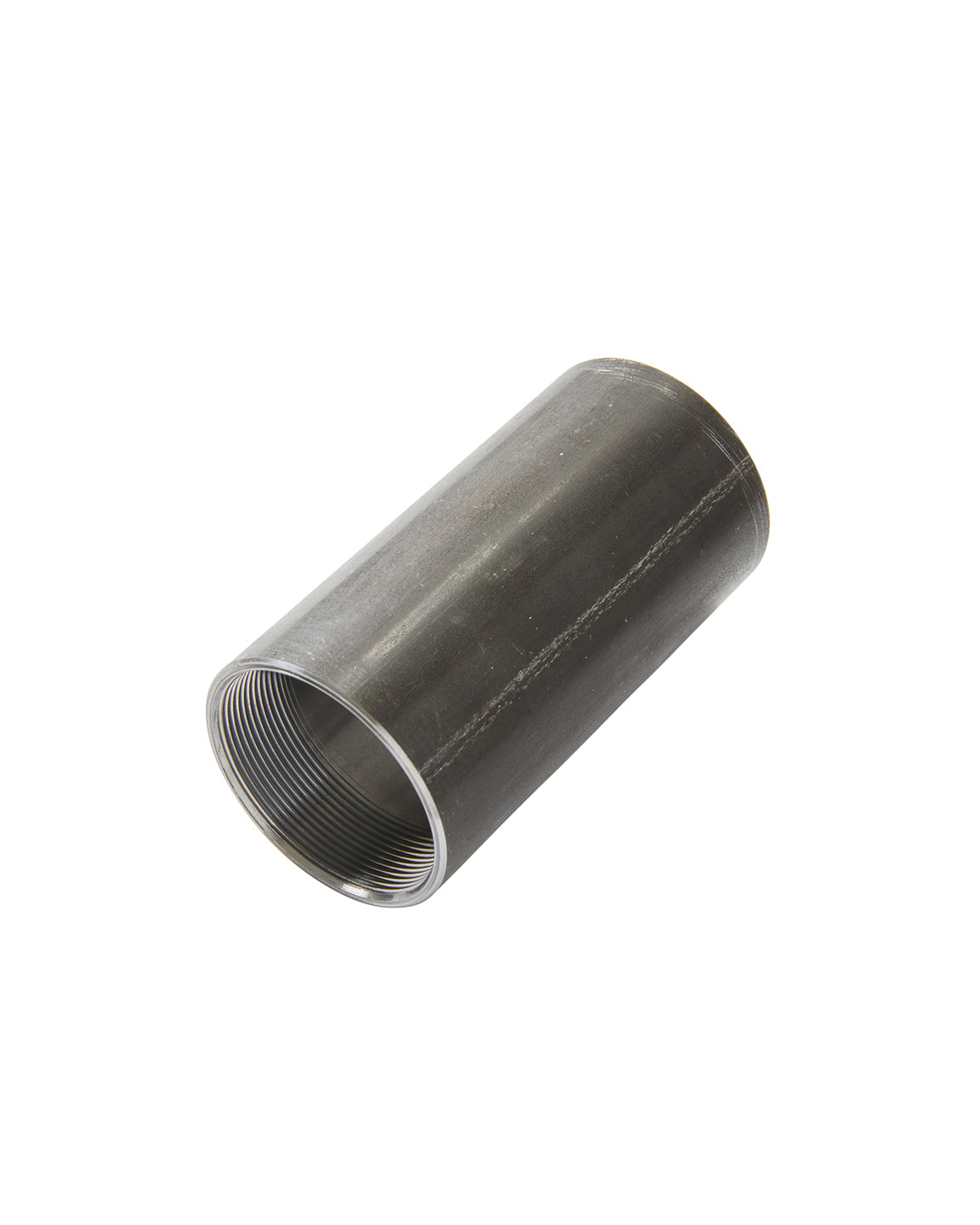

BB Shell, Steel, BSA, 1.5" OD - Select Width

Paragon
From $11.95 USD

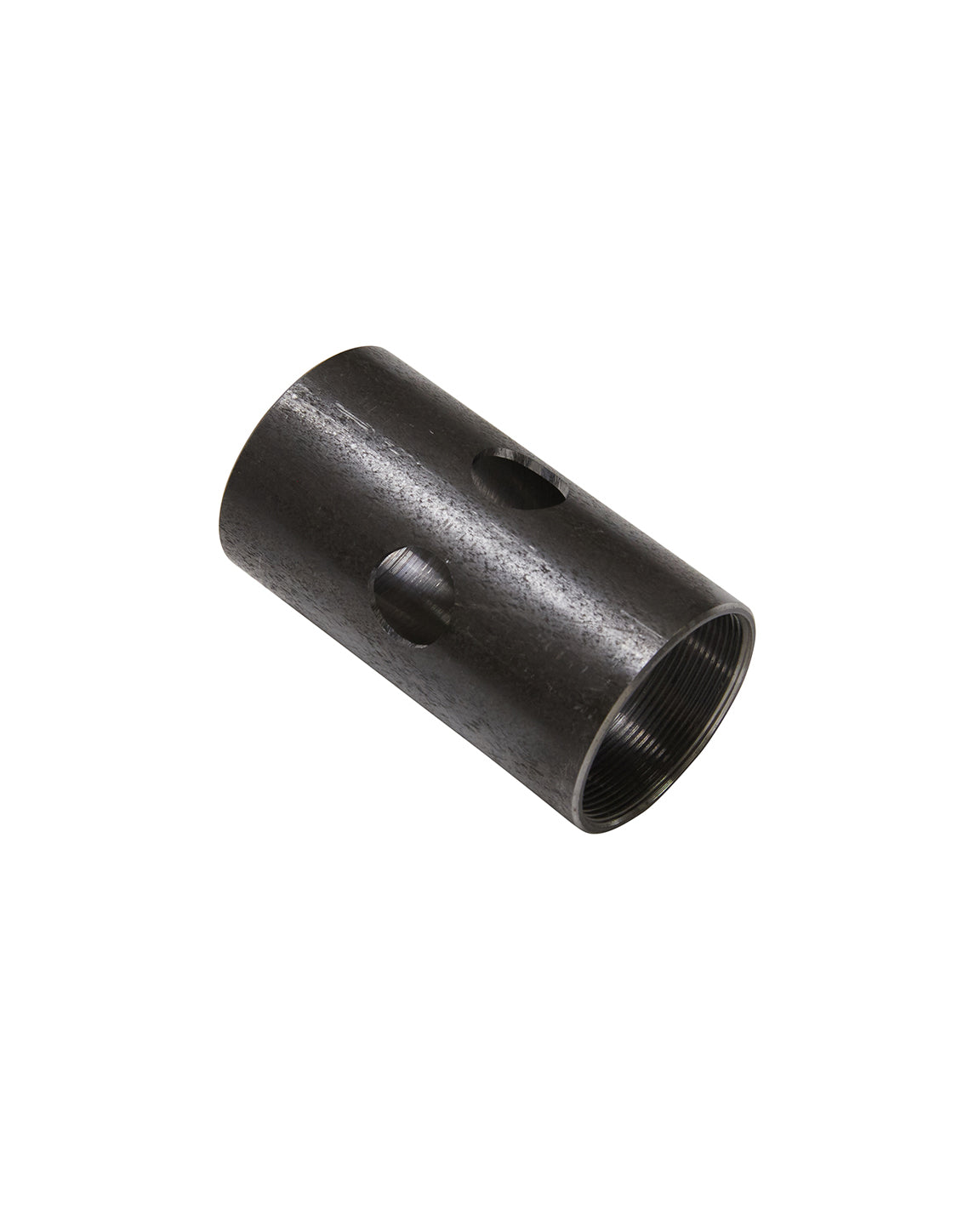

Note: Steel 68/73mm BSA BB shells are due in stock in August. For now, we have 68's in Paragon's pre-drilled version. These have 1/2" vent holes for ST/DT, plus an M5 tapped hole (for cable guide or mere drainage) on the opposing side. No chainstay vent holes.

Made in Richmond California by Paragon Machine Works.

View Full Details
View Product Details

Material: 1-1/2" x .083" wall 4130 steel tubing

OD: 1.500"

Width: 0.5 mm oversize to allow for clean up after welding

Relief: On the inside diameter to 1.385"/1.395"

Threads:

  • 1.370"-24, right and left hand; compatible with all modern threaded bottom brackets
  • Thread length = 0.50"
  • Left hand thread is identified by a radial groove on the face of the shell
  • Minor diameter = 1.330"/1.340"

Item sold individually.
