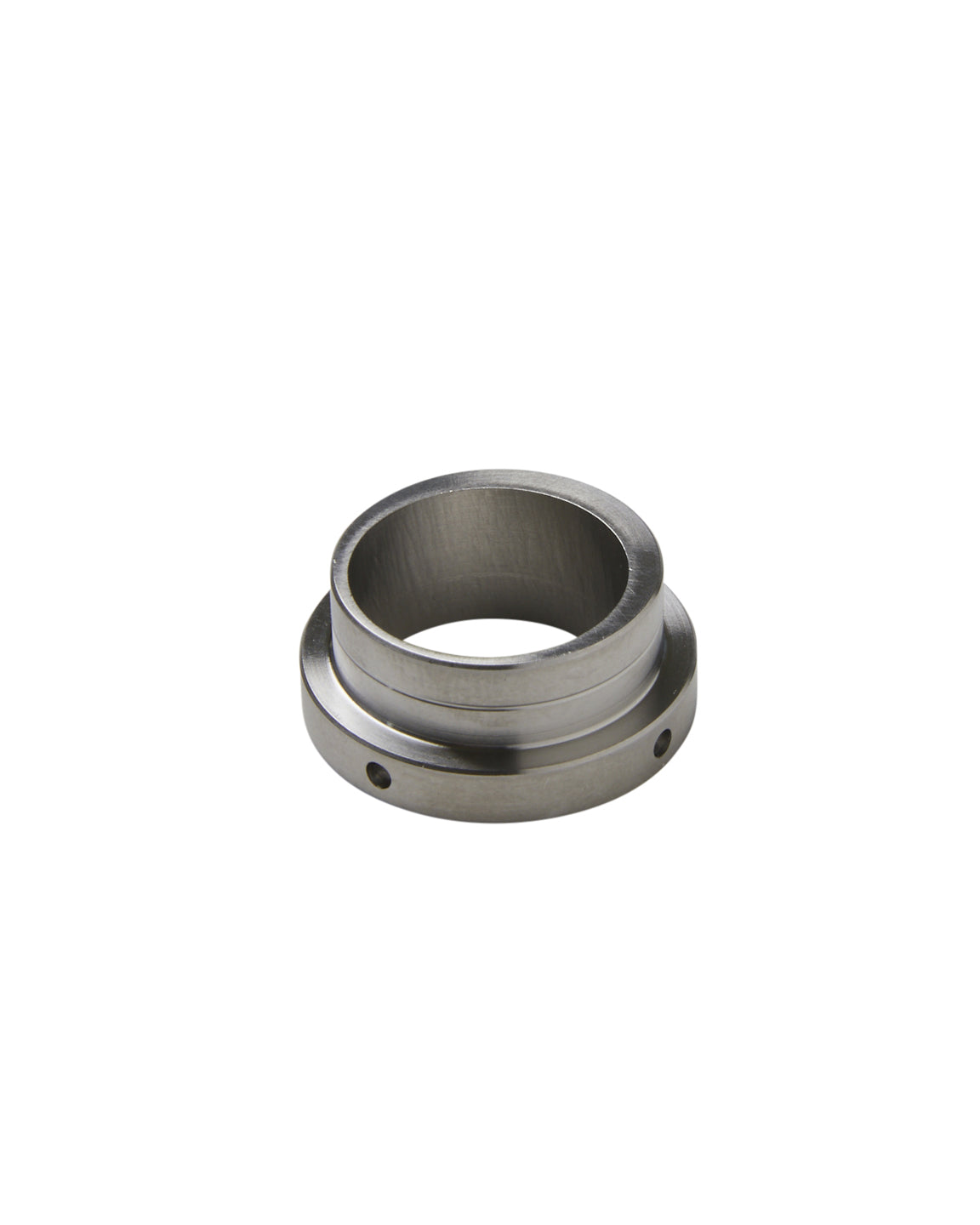

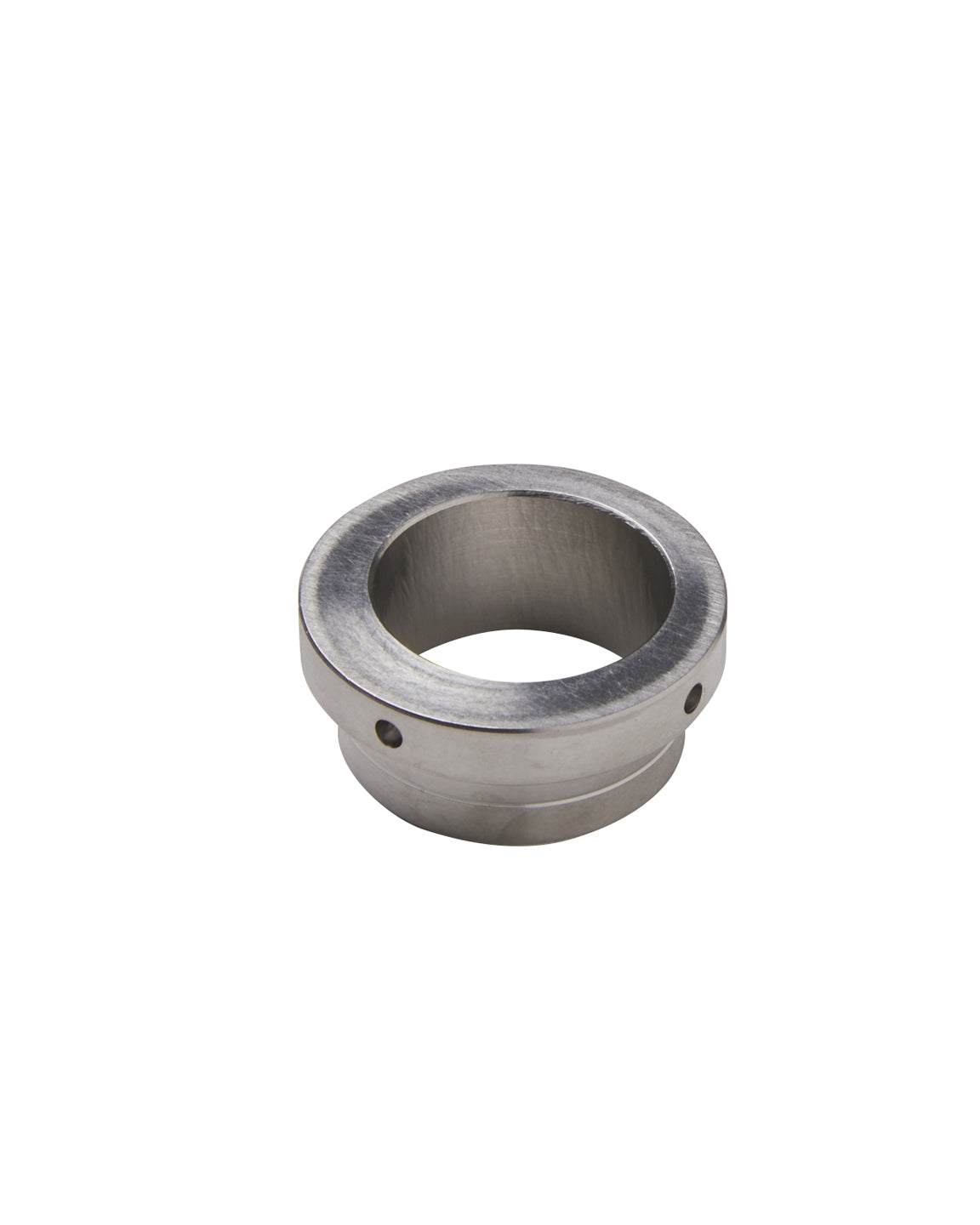

SRAM UDH Dropout Bushing, Titanium, 1mm Eccentric

Material: 6/4 titanium

Style: Eccentric, 1.0 mm

• Four 2.2 mm radial holes on the flange
• Single identification groove on the 24 mm diameter
• Use a 2 mm key to rotate the insert, using the radial holes on the flange

Application:

• Fits the right side of our titanium SRAM Full Mount/UDH eccentric round, rear dropouts
• Allows for fine tuning wheel alignment in the frame following frame construction
• The bushing:
  • Must be welded in
  • Once installed, is not meant to be consumer serviced
  • Is a structural part of the assembly

Item sold individually.
