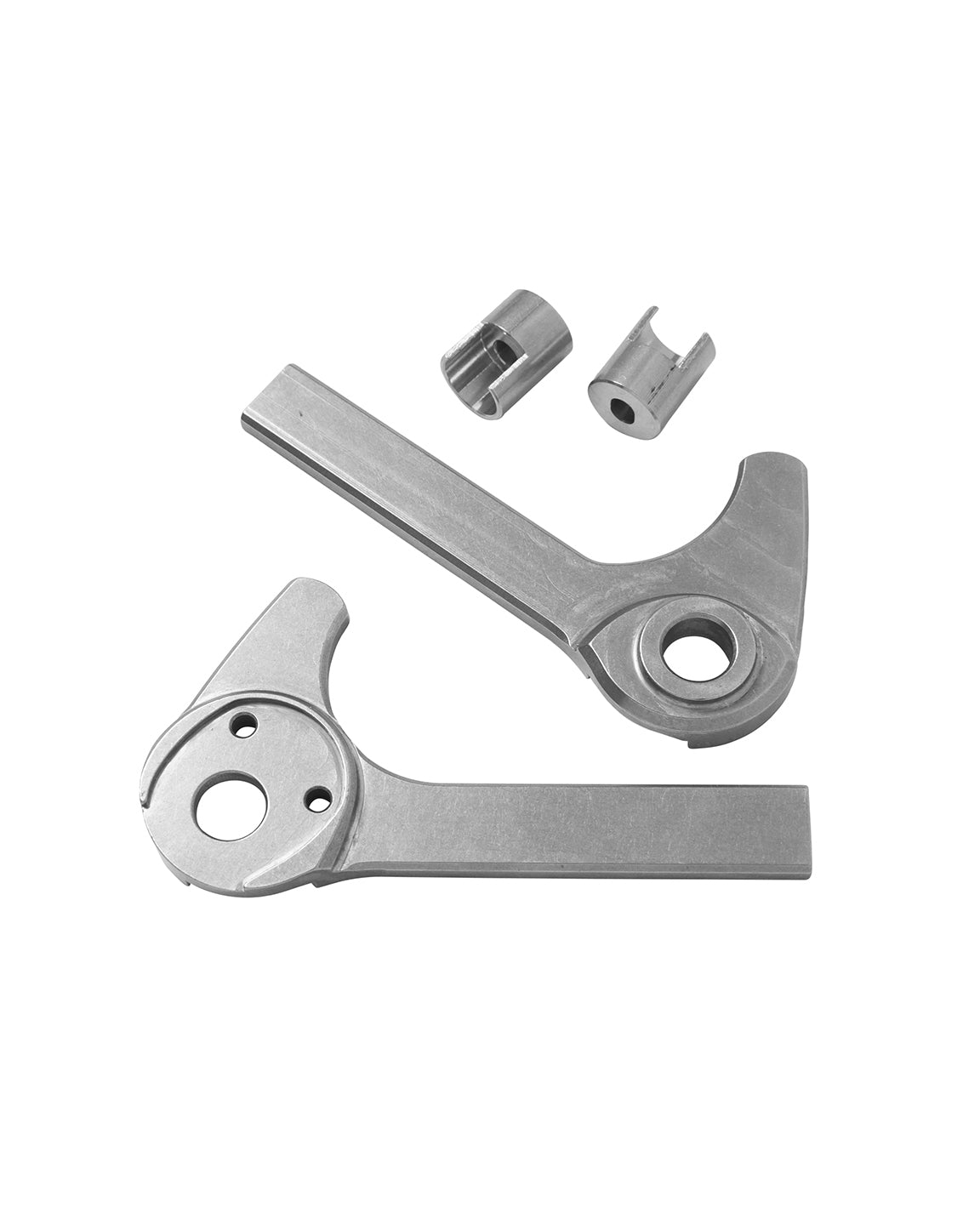

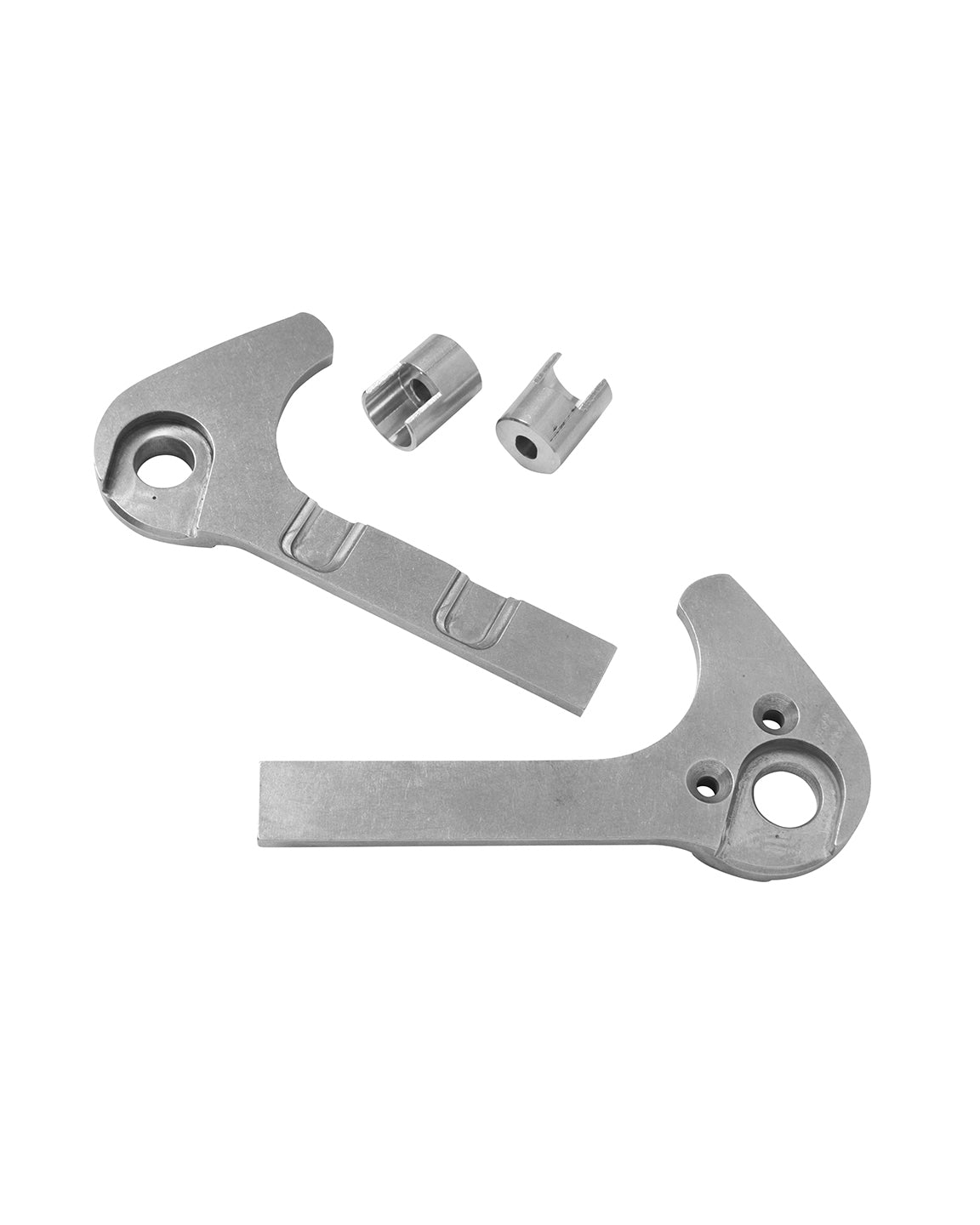

Dropout, Stainless, Plate Flat Mount, 58-degree, No Eyelets

Material: 17/4 stainless steel, four piece assembly includes:

• Right and left frame components with a 12 mm skewer hole:
  • The right side accommodates an insert that can be purchased separately, below

• Compatible caliper mounts, 2 each:
  • OD: 5/8"
  • Length: 20.5 mm
  • Mounting:
    • Mounting thickness at bolt: 10 mm
    • 0.5 mm oversized
    • Must be faced after welding to meet Shimano's tolerance

Application: Flat mount brake calipers

Angle: 58 degrees

Eyelets: None

Item sold as 4 piece assembly.
