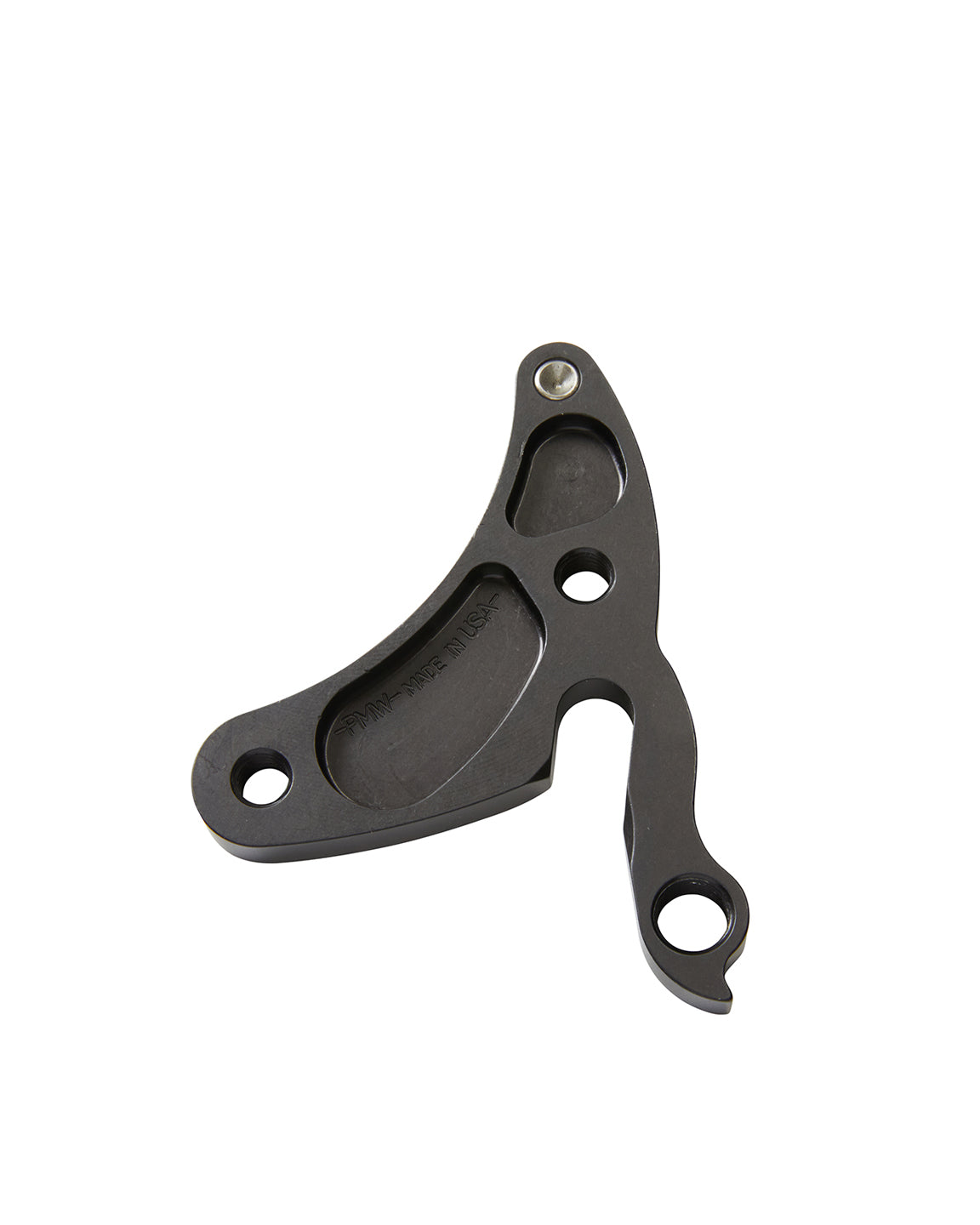

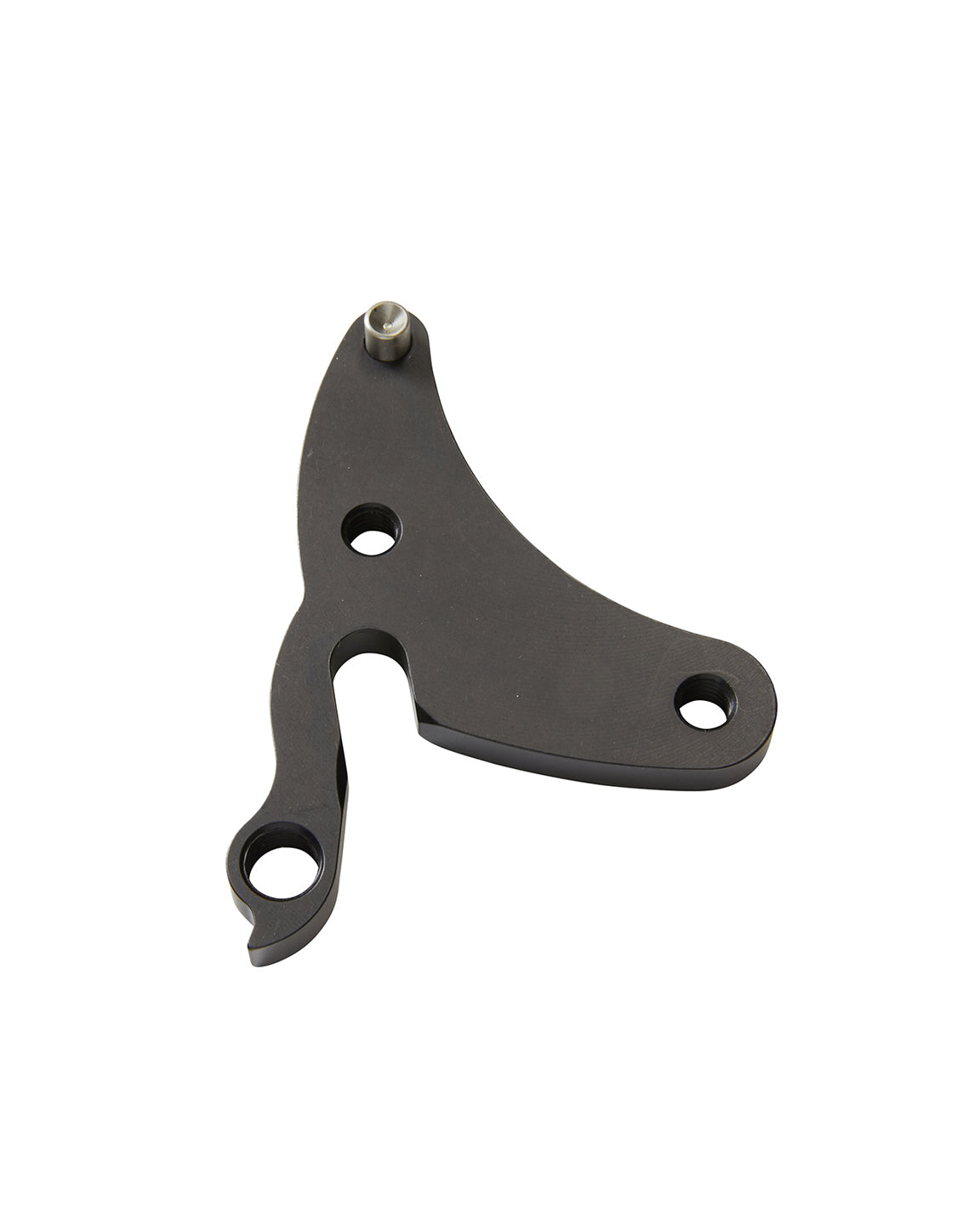

Dropout, Stainless, Rocker w/ Belt Drive Hole, No Eyelets

Material: 17/4 stainless steel

Application: Rocker Dropout assembly

Frame Components:

• 6 mm thick at bolt area
• 4 mm thick at stay tabs
• Edges are chamfered or radiused for a clean look
• Total sliding adjustment = 0.680"
• Vertical Adjustment = .030" (.76 mm)
• Right frame component has an 8 mm hole properly located to accommodate a seatstay kit for a belt drive option

Hardware (included):

• Four each M8 x 1.25 x 16 steel button head cap screws
• Four each 2 mm thick single washer

Inserts: Purchase right and left inserts separately, below.

Item includes right and left frame components and steel bolt kit.
