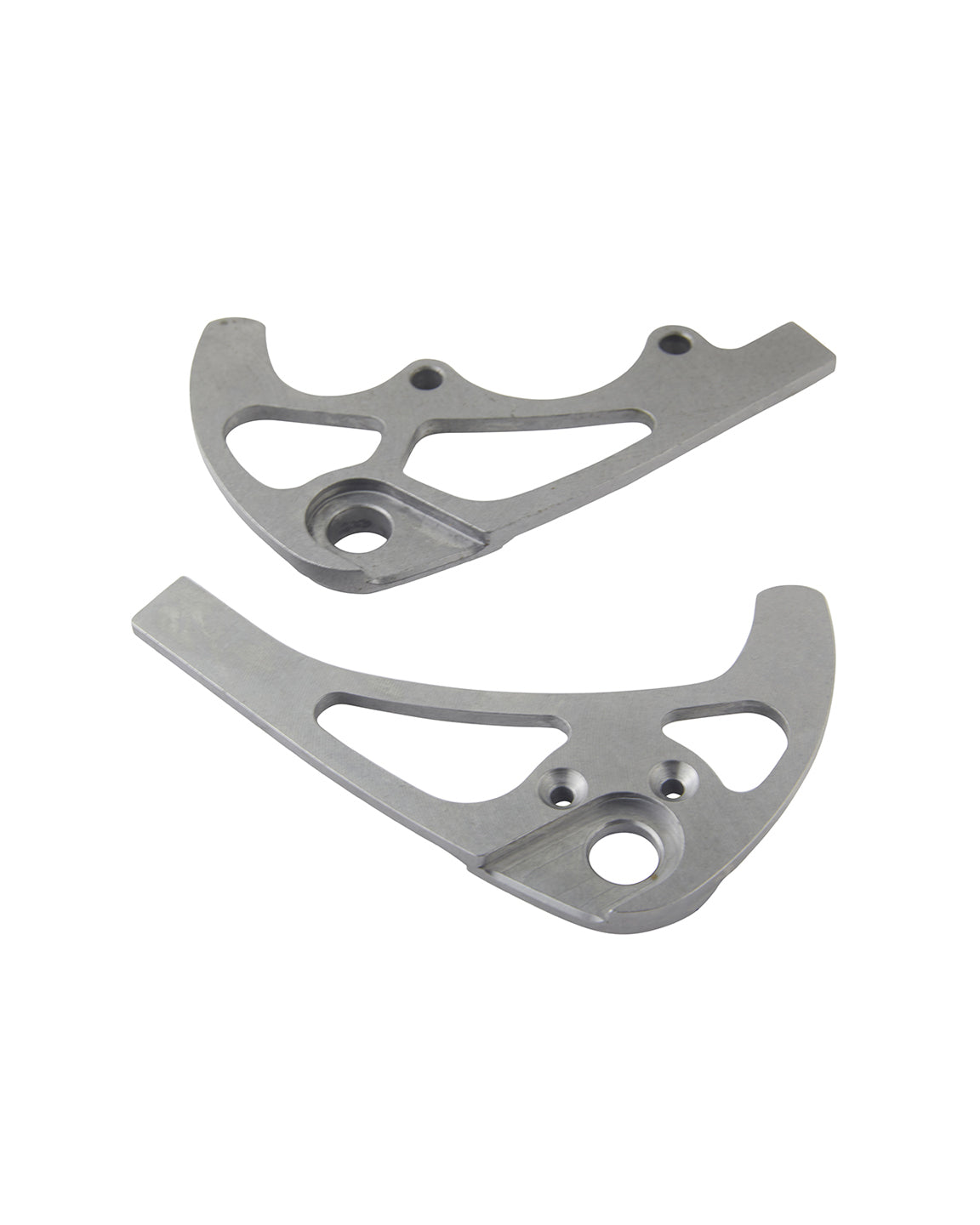

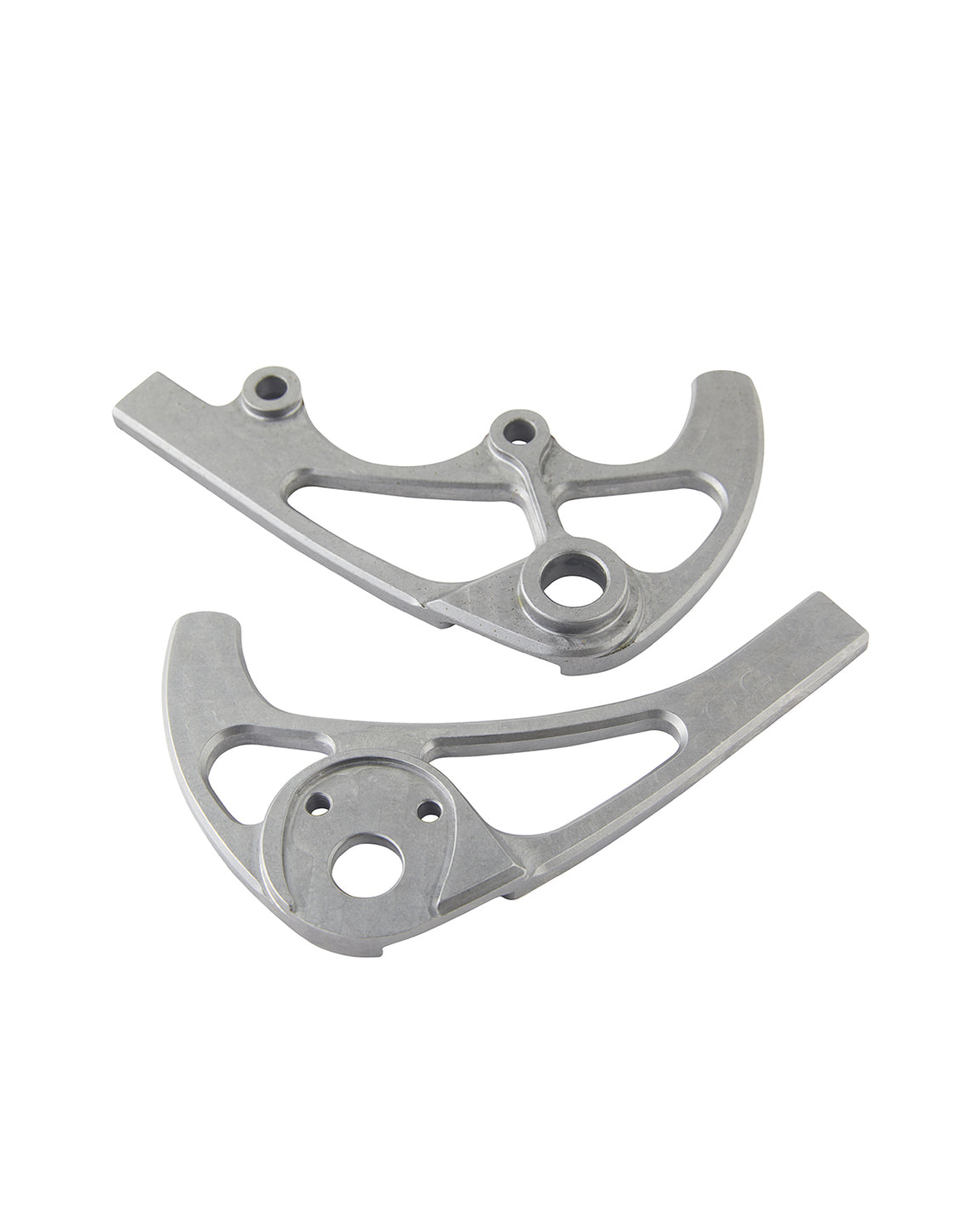

Dropout, Steel, Low Mount 12mm Thru, 58-degree, No Eyelets

Material: 1018 steel

Application: ISO disc mount

Angle: 58 degree

Frame Components:

• Right and left frame frame components:

  • Chamfered 45 degrees x 1 mm around the outside profile and window
  • The arced seatstay tab can be cut by the builder to accommodate angles up to 75 degrees
  • Tabs = 5 mm thick
• Right frame component:
  • 9 mm maximum thickness
  • Accommodates a hanger that can be purchased separately, below
  • 8 mm thick with the hanger installed


• Left frame component:
  • Integrated ISO disc mount located between the stays
  • 12 mm maximum thickness
  • Dropout face and caliper mounting holes are 9 mm thick

Eyelets: None

Item sold by pair.
