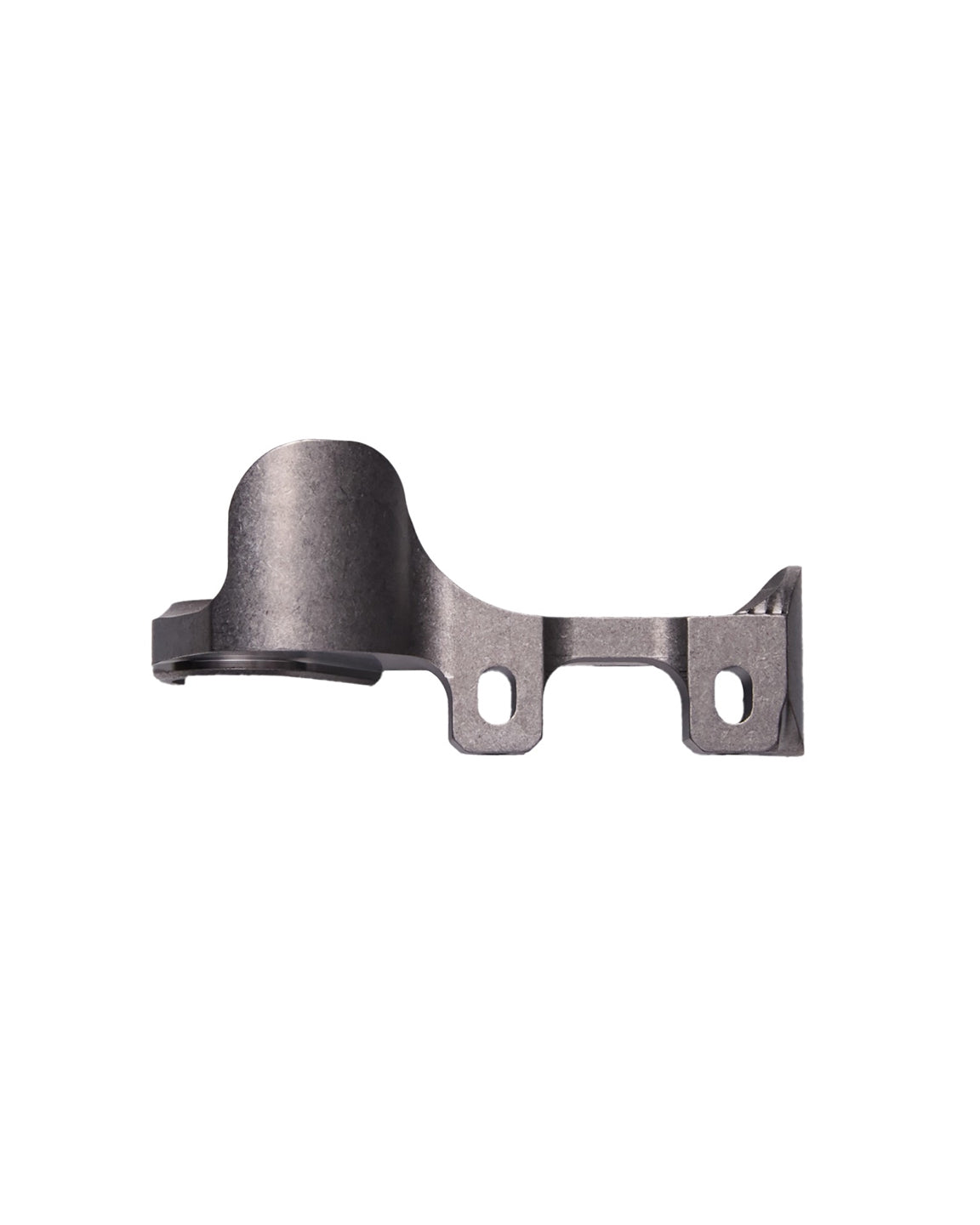

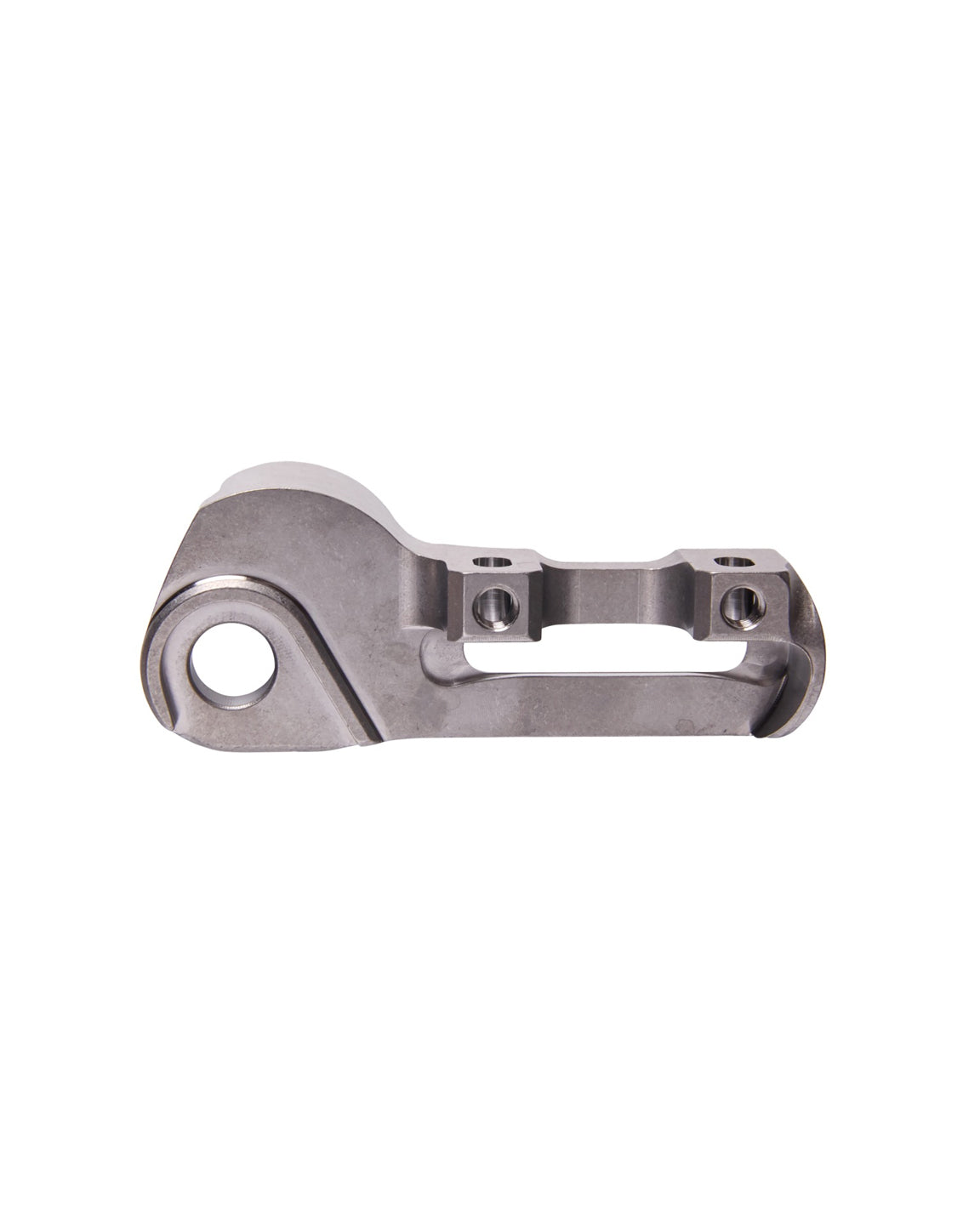

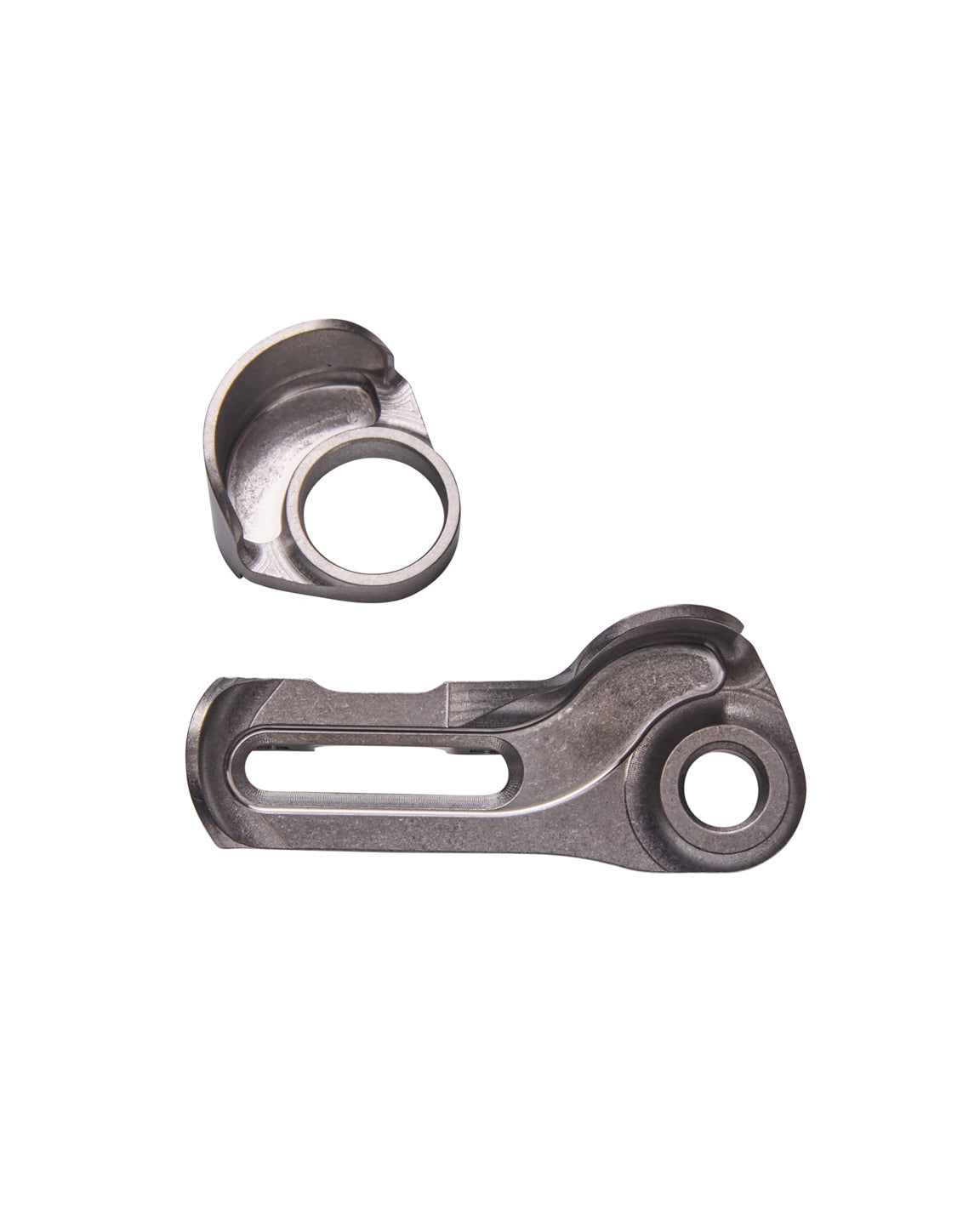

Dropout, Titanium, SRAM UDH Flat Mount 140/160 Integrated, Eccentric

Material: 6/4 titanium, includes right and left frame components

Application:

• SRAM Full Mount derailleurs and Universal Derailleur Hanger
• Meets all SRAM specs

OD: 1-3/4"

Flanges:

• Width: 1.180"
• Symmetric seatstay flanges
• There is approximately 3 mm per side to make the weld with 7/8" chainstays and 3/4" seatstays
• Weld the tubes as far outboard as possible to avoid SRAM's clearance mask

Caliper Mount: Flat mount integrated for 140 mm rotor (direct) or 160 mm (with adapter, adapter not included)

• Caliper mount thickness: 10 mm

Wheel Alignment:

• Concentric: use a 0 mm offset bushing
• Eccentric:
  • Select a 0.5 or 1.0 mm offset bushing
  • For 0.5 or 1.0 mm bushings use a 2 mm hex key to rotate the insert using the radial holes on the flange
• The bushing is a structural part of the assembly and must be welded in
  • Once installed it is not meant to be consumer serviced

Purchase Separately:

• Bushing: Select 0, 0.5 or 1 mm
• Hanger: SRAM Universal Derailleur hanger
  • Skewer hole is threaded M12 x1

Item sold as pair.
