Dropout, Titanium, SRAM UDH Flat Mount 160/180 Integrated, Eccentric

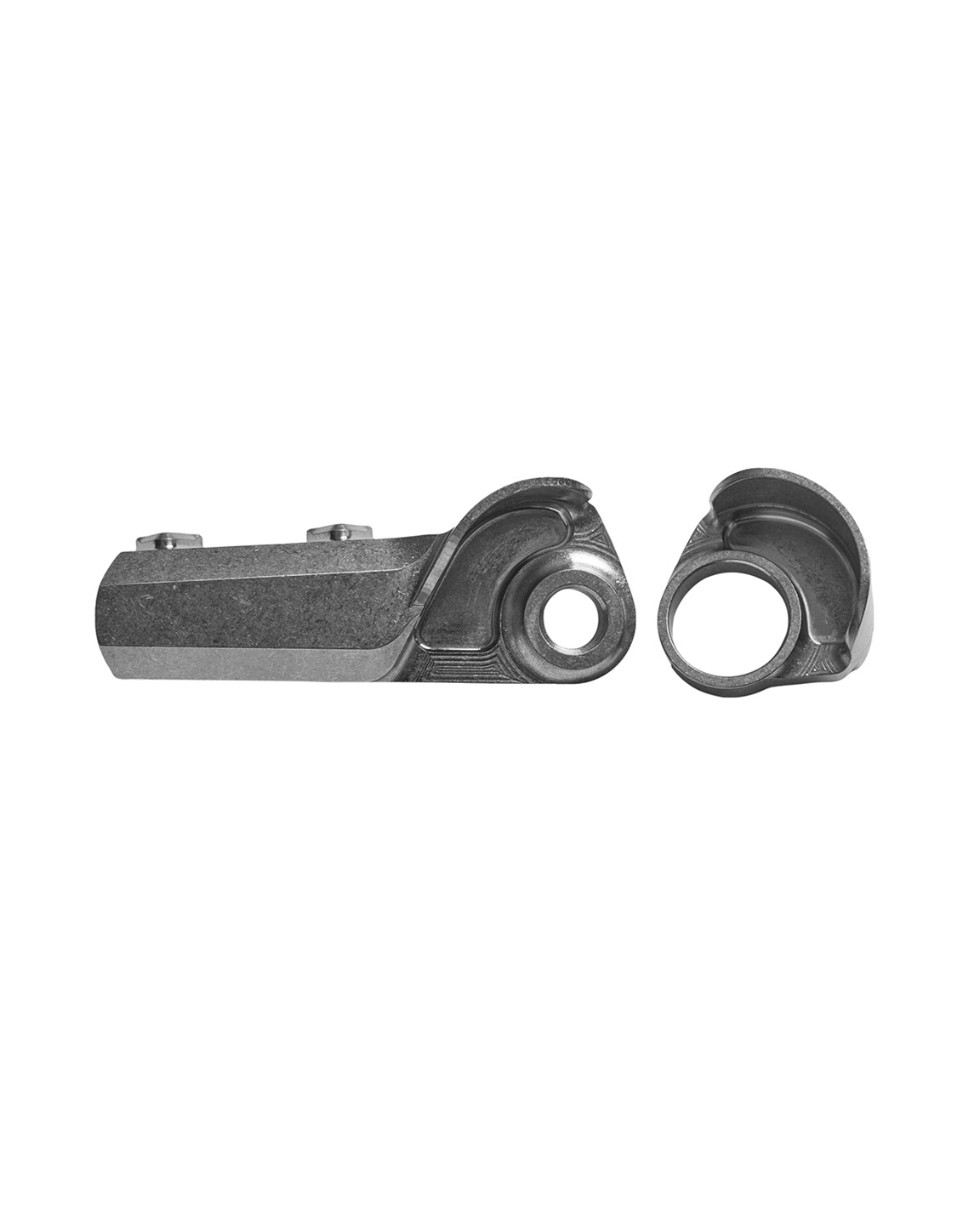

Material: 6/4 titanium, includes right and left frame components

Application:

• SRAM Full Mount derailleurs and Universal Derailleur Hanger
  • Meets all SRAM specs

OD: 1-3/4"

Flanges:

• Width: 1.180"
• Symmetric: Side-to-side chainstay and seatstay
• There is approximately 3 mm per side to make the weld with 7/8" chainstays
• There is approximately 5.5 mm per side to make the weld with 3/4" seatstays
• Push the seatstay outboard as far as possible to avoid SRAM's clearance mask

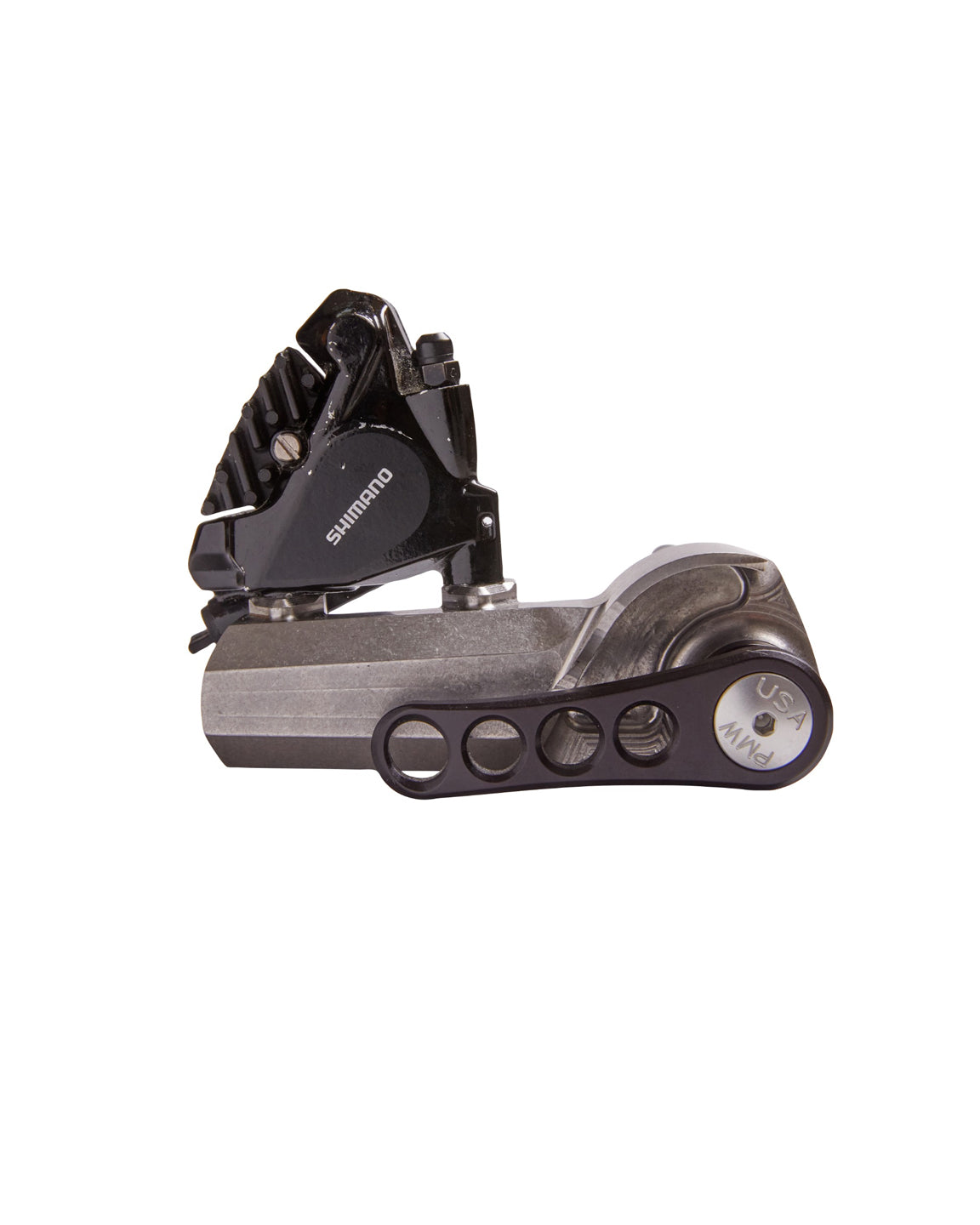

Caliper Mount: Flat Mount Integrated for 160 mm rotor (direct) or 180 mm (with adapter, adapter not included)

Wheel Alignment:

• Concentric: use a 0 mm offset bushing
• Eccentric:
  • Select a 0.5 or 1.0 mm offset bushing
  • For 0.5 or 1.0 mm bushings use a 2 mm hex key to rotate the insert using the radial holes on the flange
• The bushing is a structural part of the assembly and must be welded in
  • Once installed it is not meant to be consumer serviced
• The chainstay center MUST be 3.5 mm above axle center to meet SRAM's specs
• Use the flats on the bottom of the dropout to index:

  • Put a straight edge on the flat and postition it 13 mm +/- 3 mm below bottom bracket center

Purchase Separately:

• Hanger: SRAM Universal Derailleur hanger
  • Skewer hole is threaded M12 x1
• Bushing

Item sold as pair.
