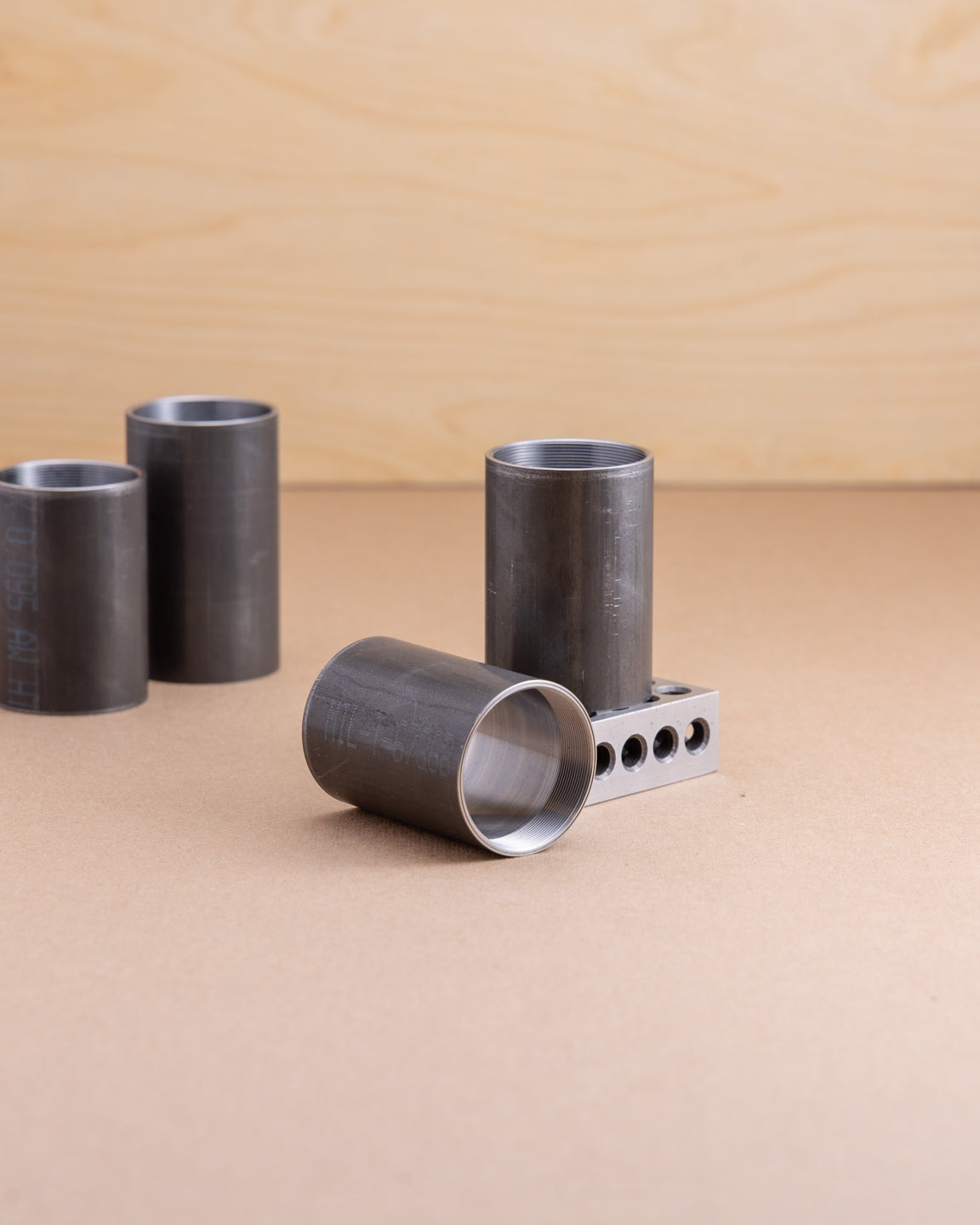

BB Shell, Steel, T47, 2" (51mm) OD - Select Width

Paragon
From $18.04 USD

Note: We will be stocking 68/73/87/92mm T47 shells indefinitely. Once sold out, all other widths will be discontinued.

Machined in Port Townsend, Washington by Forager Cycles.

View Full Details
View Product Details

Material: 2" OD x .156" wall 4130 steel tubing

OD: 2.000"

Width: Supplied 1.0 mm oversize to allow for clean up after welding

Relief: On the inside diameter to 47.75 mm +/- 0.1

Threads:

  • M47 x 1, right and left hand
  • Thread length = 0.50"
  • Left hand thread is identified by a radial groove on the face of the shell
  • Minor diameter = 46 mm +0.1/-0

Item sold individually.
