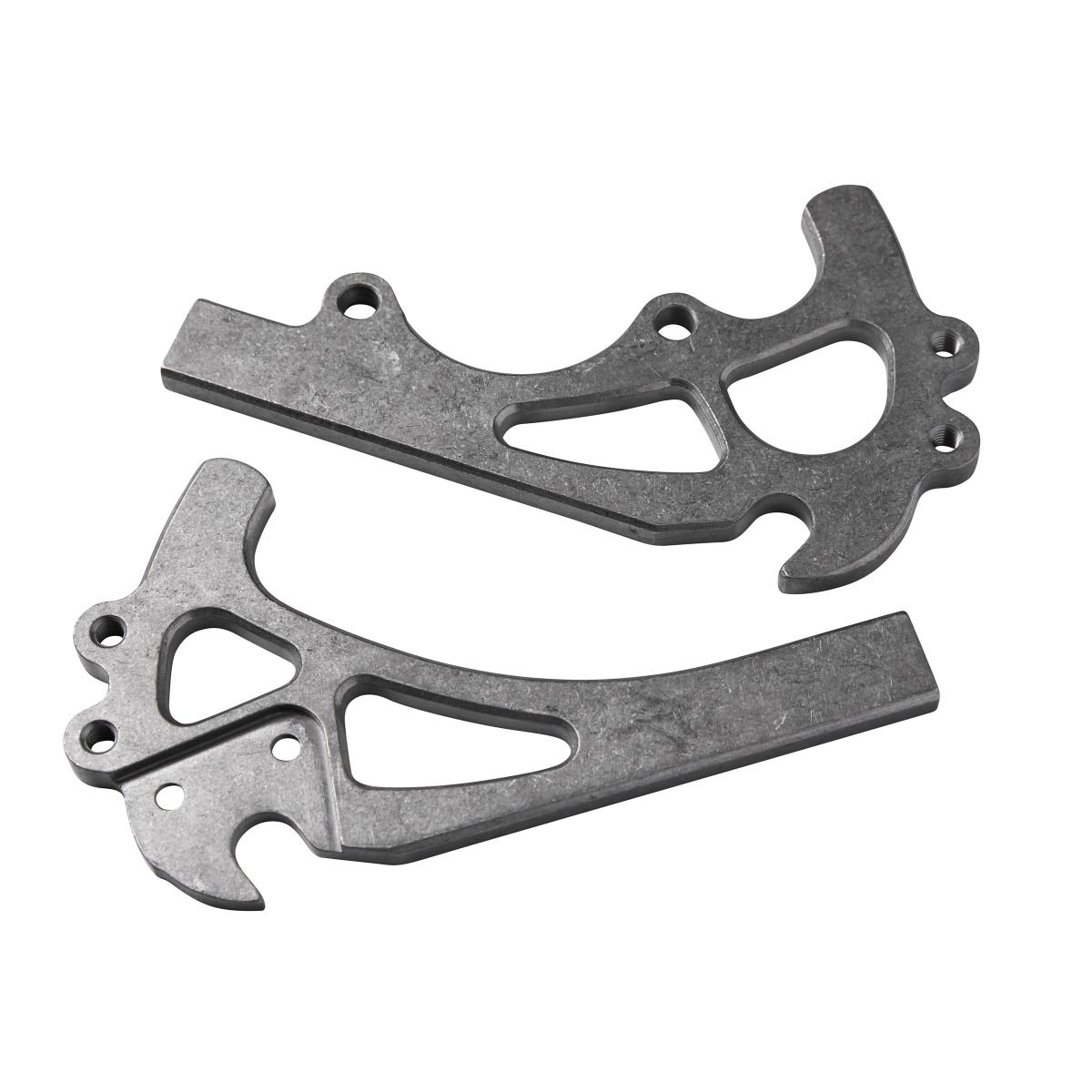

Dropout, Steel, Low Mount 10mm QR - Select Version

Paragon
$89.95 USD

Note: Once sold out, all 10mm QR versions of the low-mount dropout will be discontinued. (As a rule, we'll only be producing dropouts intended for disc brakes in their thru-axle versions.)

Made in Richmond, California by Paragon Machine Works

View Full Details
View Product Details

Material: 1018 steel

Application: ISO disc mount

Frame Components:

  • Right and left frame frame components:
    • Relieved on one side
    • Chamfered 45 degrees x 1mm around the outside profile and window
    • Tabs = 5mm thick
  • Right frame component:

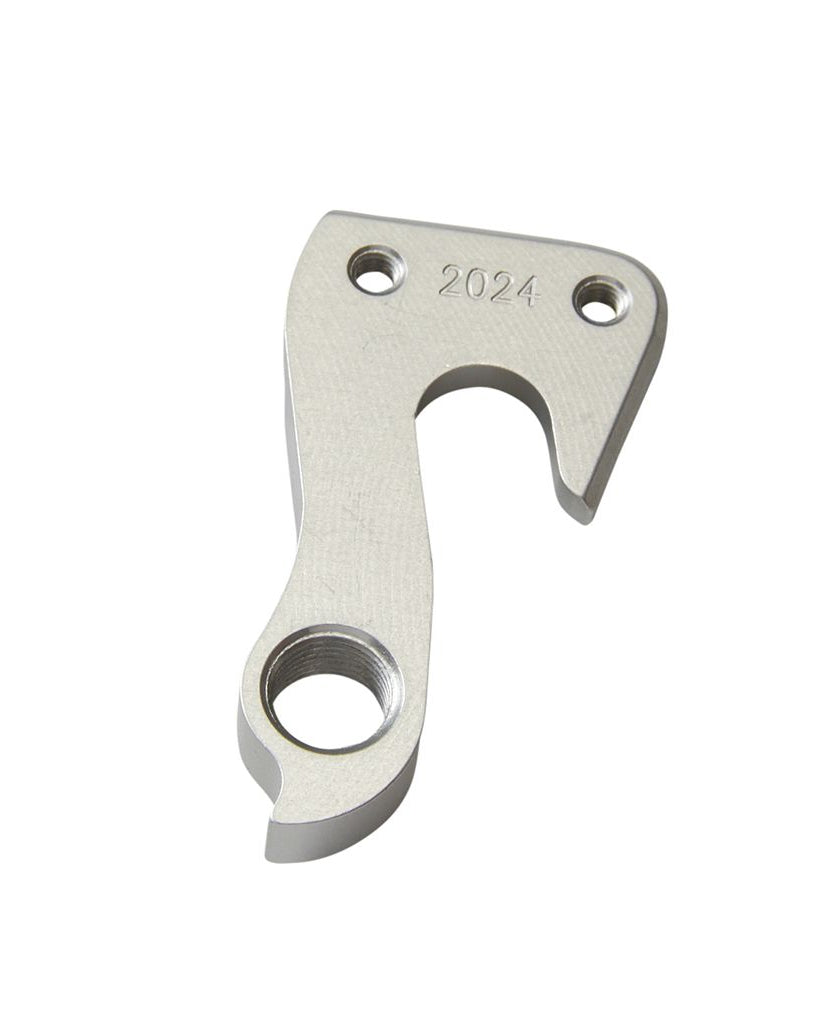

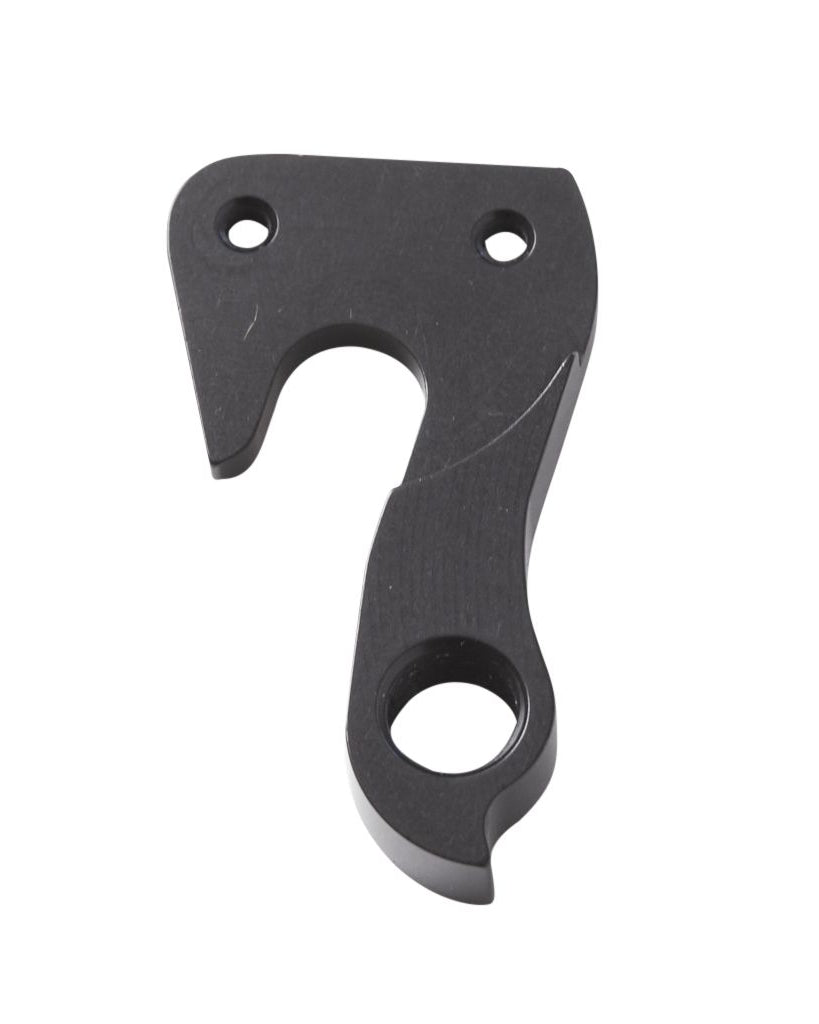

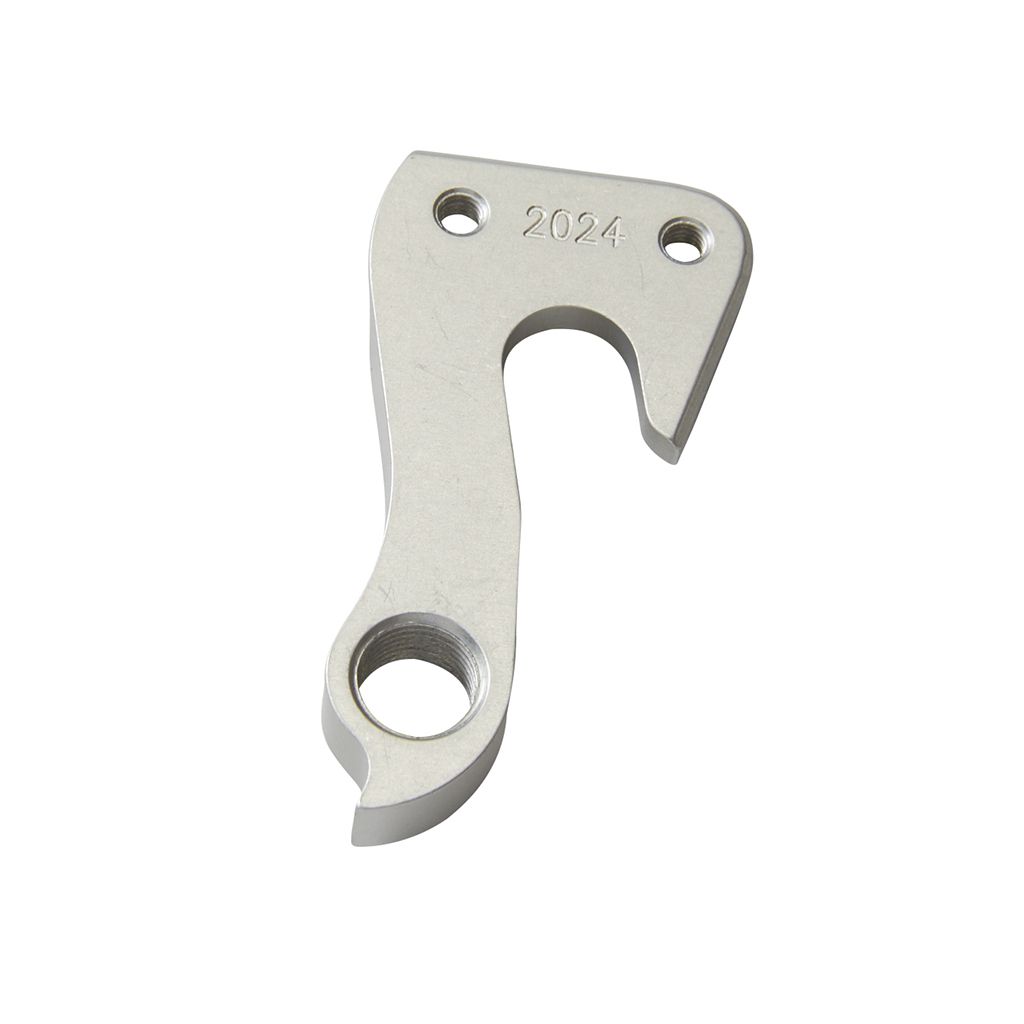

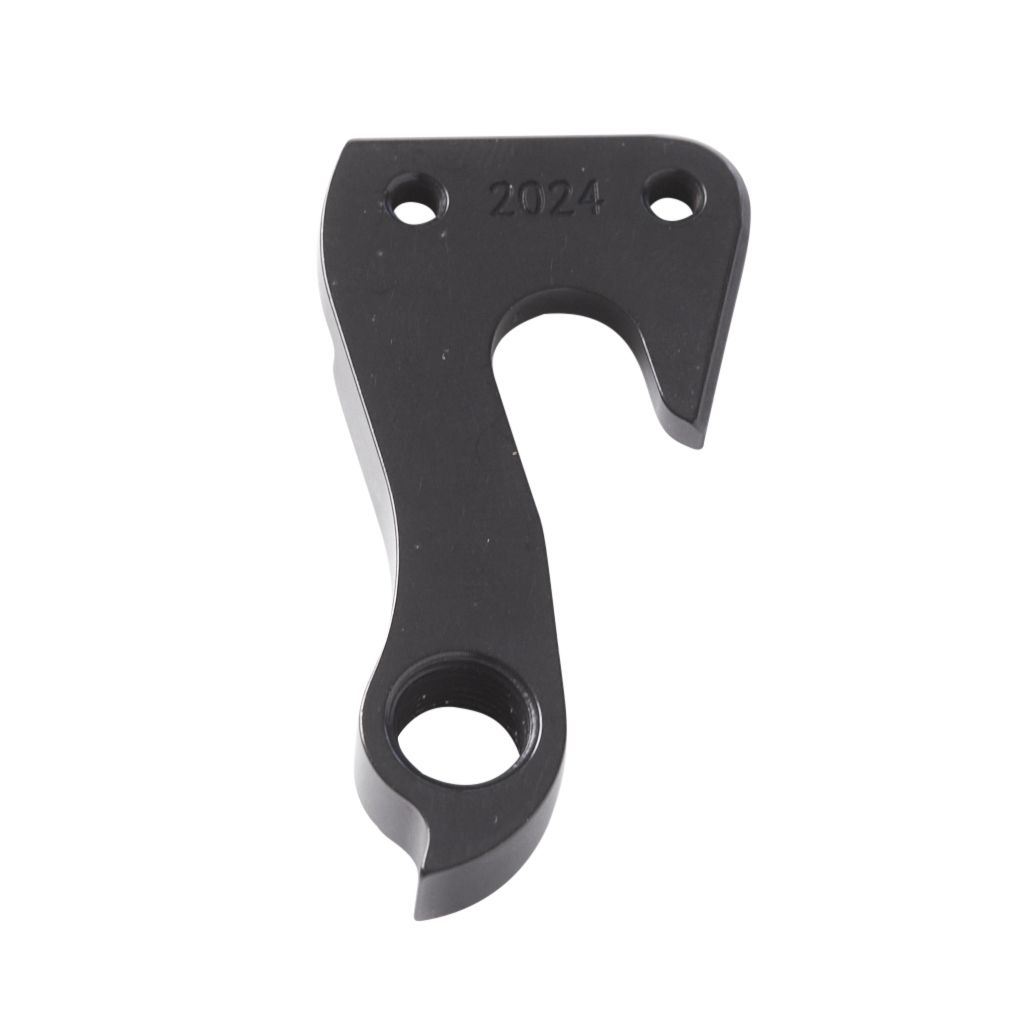

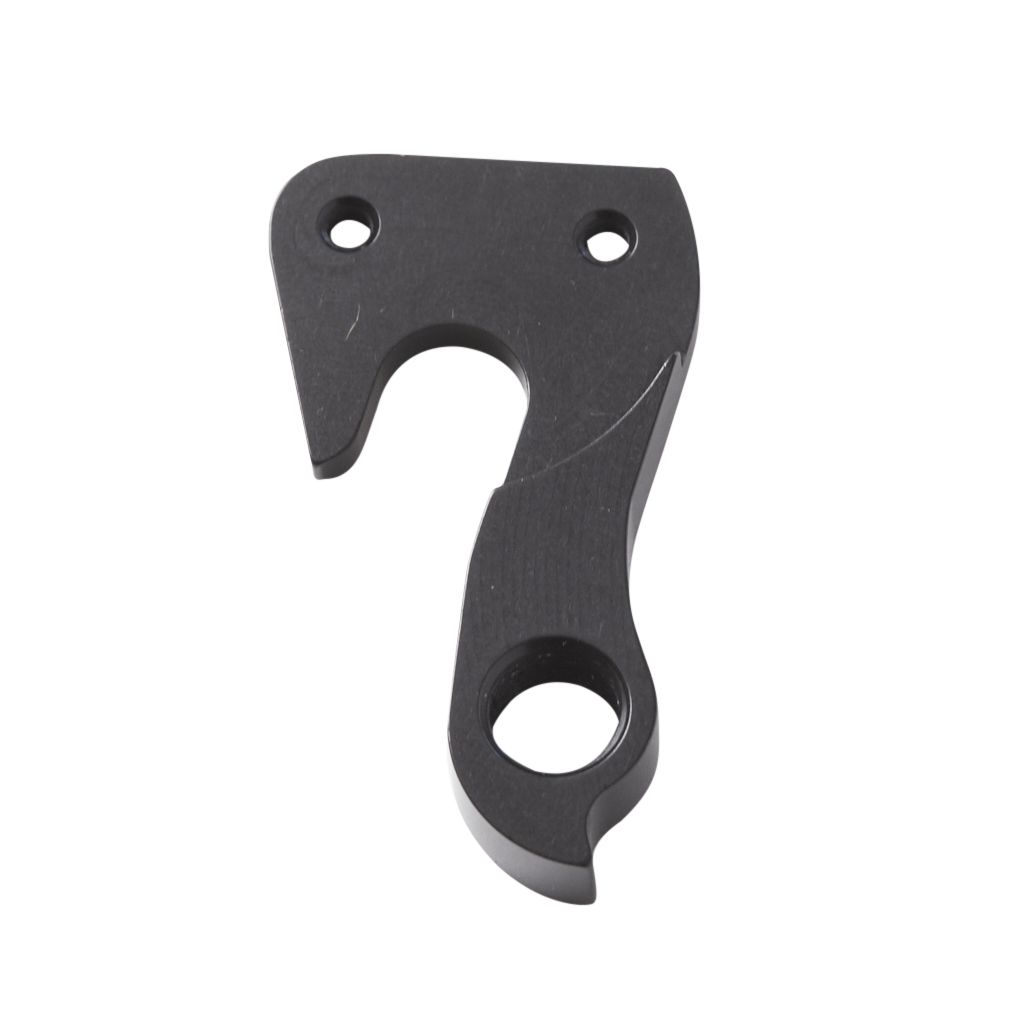

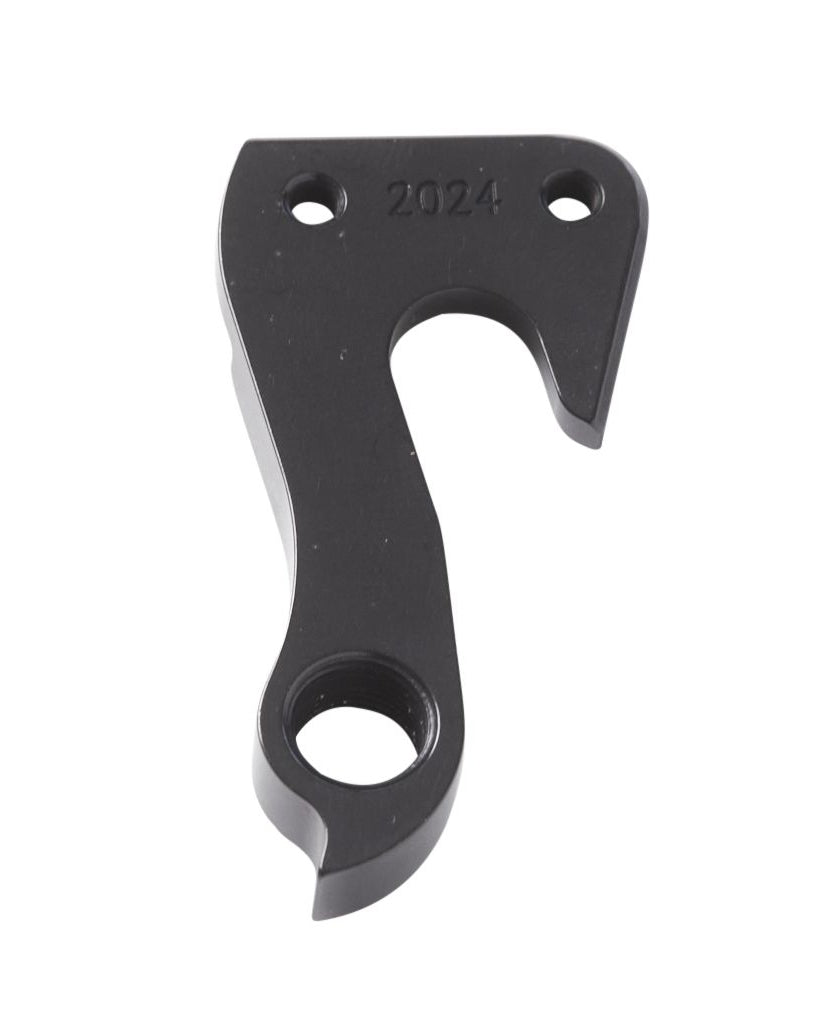

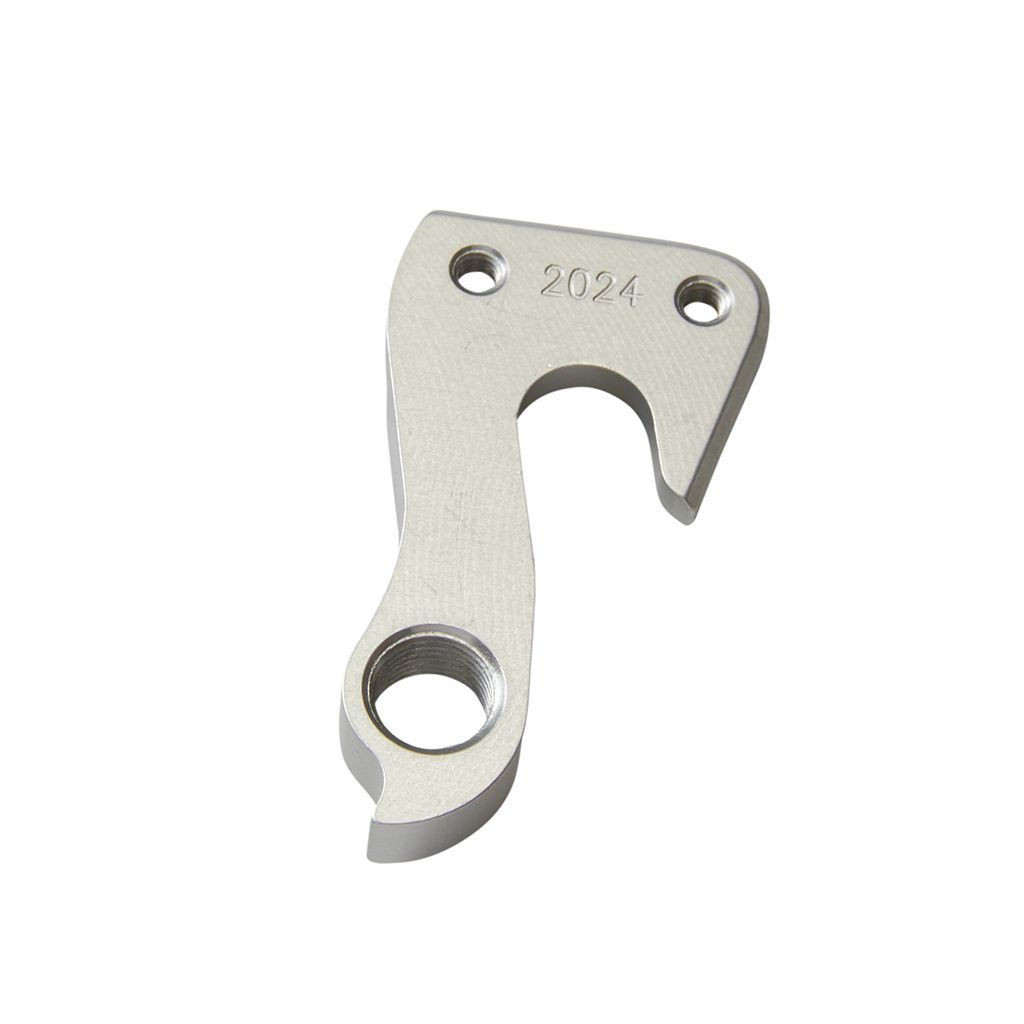

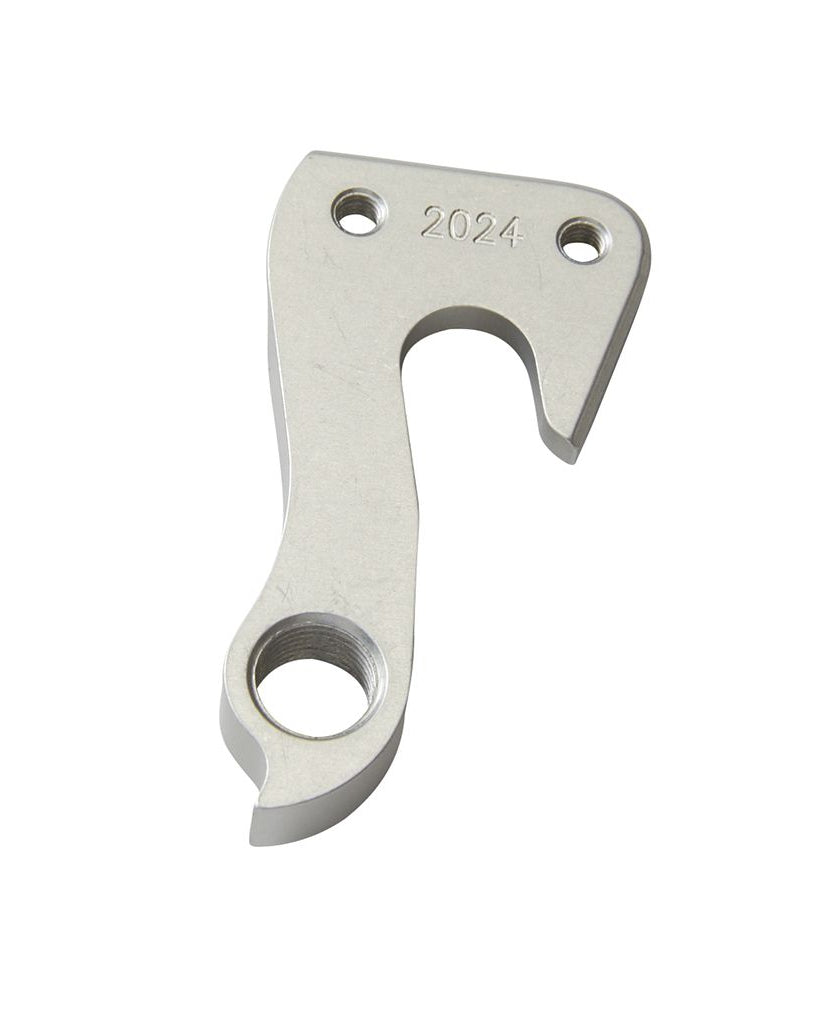

    • Accommodates a hanger that can be purchased separately, below
    • 8mm thick with the hanger installed
    • The arced seatstay tab can be cut by the builder to accommodate angles up to 75 degrees
  • Left frame component:
    • Integrated ISO disc mounts located between the stays
    • Dropout face and caliper mounting holes are .250" thick

Eyelets: Four, M5 x .8

Item sold by pair.
