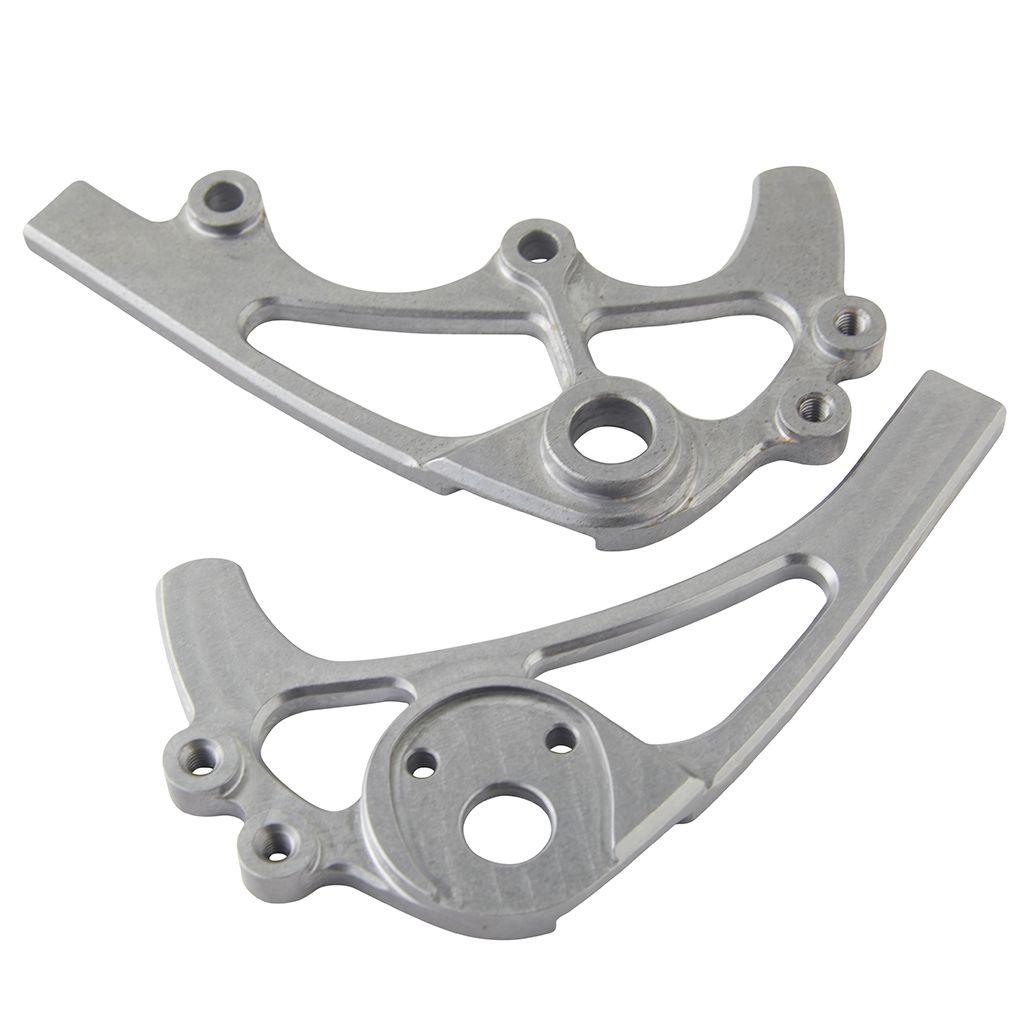

Dropout, Steel, Low Mount 12mm Thru - Select Version

Material: 4130 steel

Application: ISO disc mount

Frame Components:

• Right and left frame frame components:

  • Chamfered 45-degrees x 1mm around the outside profile and window
  • The arced seatstay tab can be cut by the builder to accommodate angles up to 75-degrees
  • Tabs = 5mm thick
• Right frame component:
  • 9mm maximum thickness
  • Accommodates a hanger that can be purchased separately
  • 8mm thick with the hanger installed

• Left frame component:
  • Integrated ISO disc mount located between the stays
  • 12mm maximum thickness
  • Dropout face and caliper mounting holes are 9mm thick

Item sold by pair.
