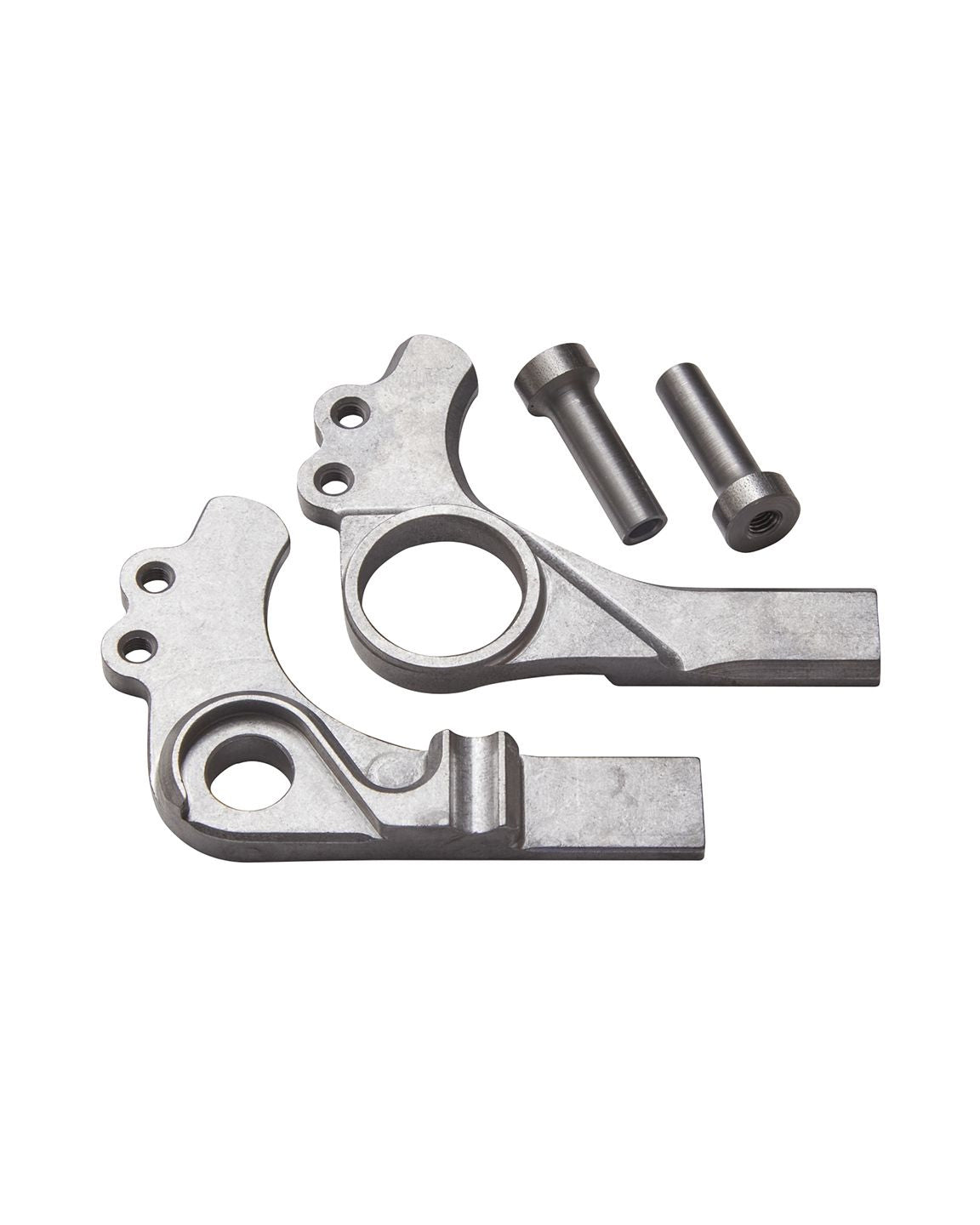

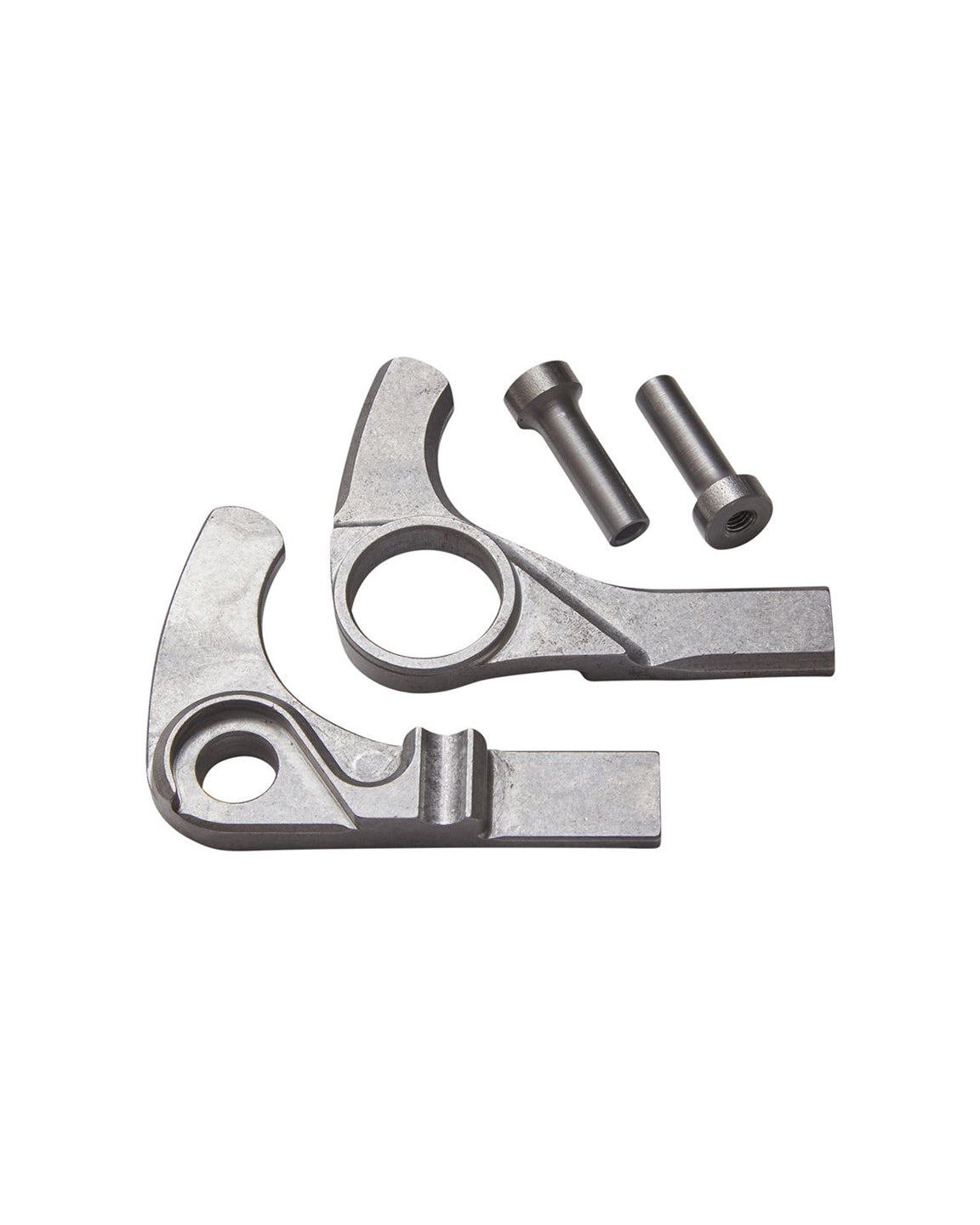

Dropout, Steel, Plate SRAM UDH Flat Mount - Select Version

Material: 1018 steel, includes right and left frame components

Application:

• SRAM Full Mount derailleurs and Universal Derailleur Hanger
  • Meets all SRAM specifications
• Front-style flat mount standard

Alignment:

• Symmetric, side-to-side
• Eccentric, uses a bushing for alignment
  • Select a 0, 0.5 or 1.0 mm offset bushing (purchase from Related Products below)
  • For 0.5 or 1.0 mm bushings use a 2mm hex key to rotate the insert, using the radial holes on the flange
  • The bushing is a structural part of the assembly and must be silver brazed in; once installed it is not meant to be consumer serviced
• Use the chainstay tabs to index right and left frame components

Brake Bosses:

• For 160 or 180 mm flat mount (dependent on adapter orientation)
• Two each brake bosses included


Flat Mount Brake:

• Uses the front-style flat mount standard

Purchase Separately (see Related Products below):

• Concentric or eccentric bushing
• SRAM Universal Derailleur Hanger
  • Axle hole is threaded M12 x1
• Front flat mount adapter plate
