Dropout, Titanium, Conventional Slider, Plate - Select Version...

Product Details

Material: 6/4 titanium

Application: Flat Sliding Dropout assembly

Frame Components:

• Flat
• 5 mm thick at the chainstay and seatstay tabs
• Total sliding adjustment = 0.800"


Hardware (included):

• Four each M8 x 1.25 x 18 steel button head cap screws
• Two each M5 x 0.8 x 35 socket head cap screws
• Two each 2 mm thick double washers
• Two each M5 brass thumb nuts
• Two each M5 hexagon locknuts
• Both the hex nuts and the thumb nuts are meant to be used as locknuts for the adjuster screw. Typically one or the other is used, not both. Some riders use the adjusting screw bottomed out in the thumb nut, making a larger head for the adjusting screw. If you choose to do this, use the hex nut as a locknut.

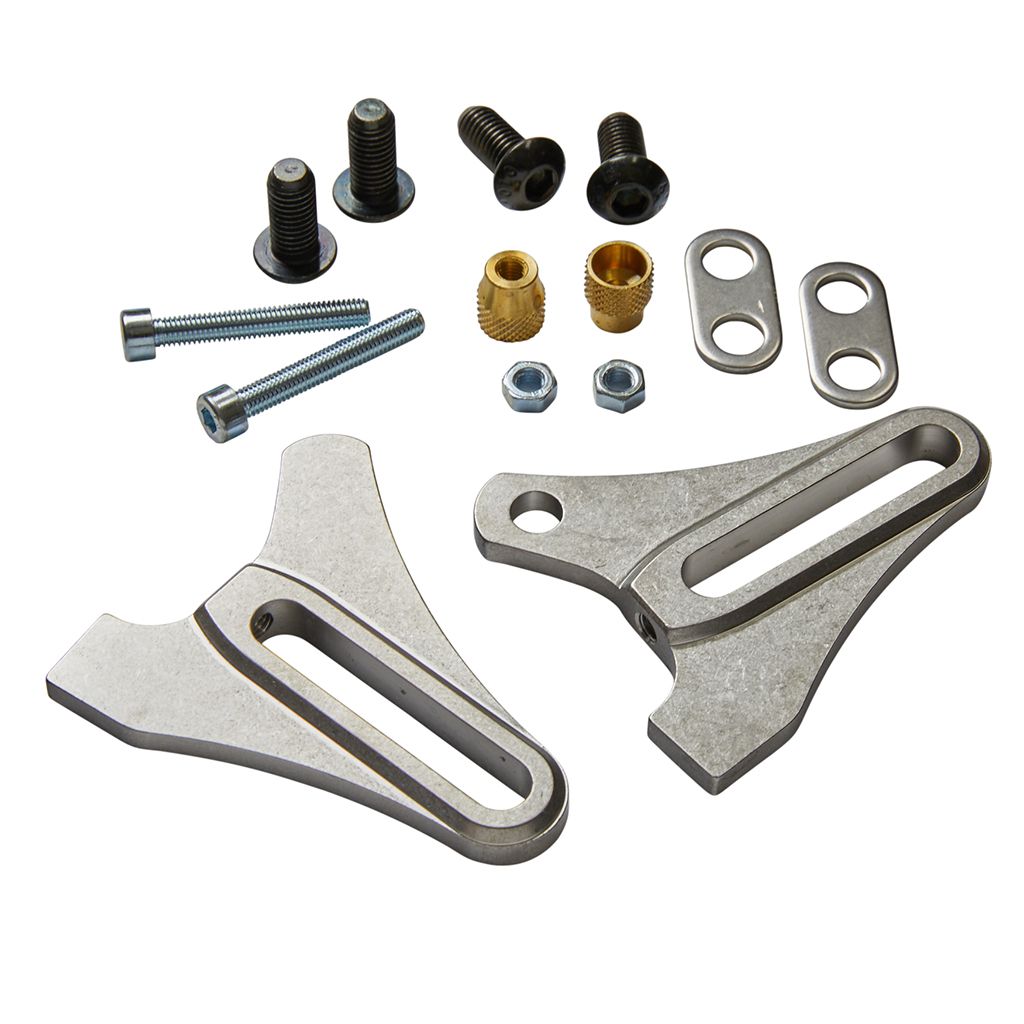

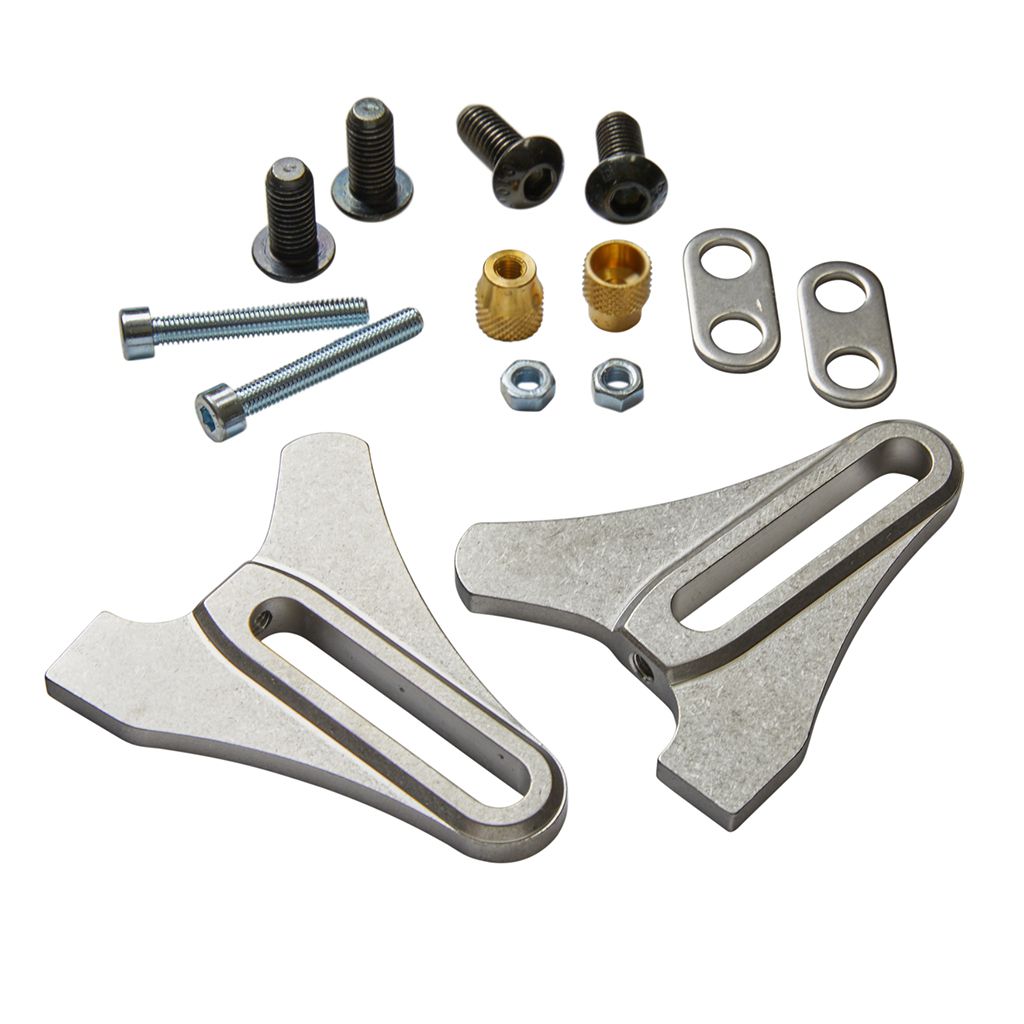

Item includes right and left frame components and steel bolt kit.
