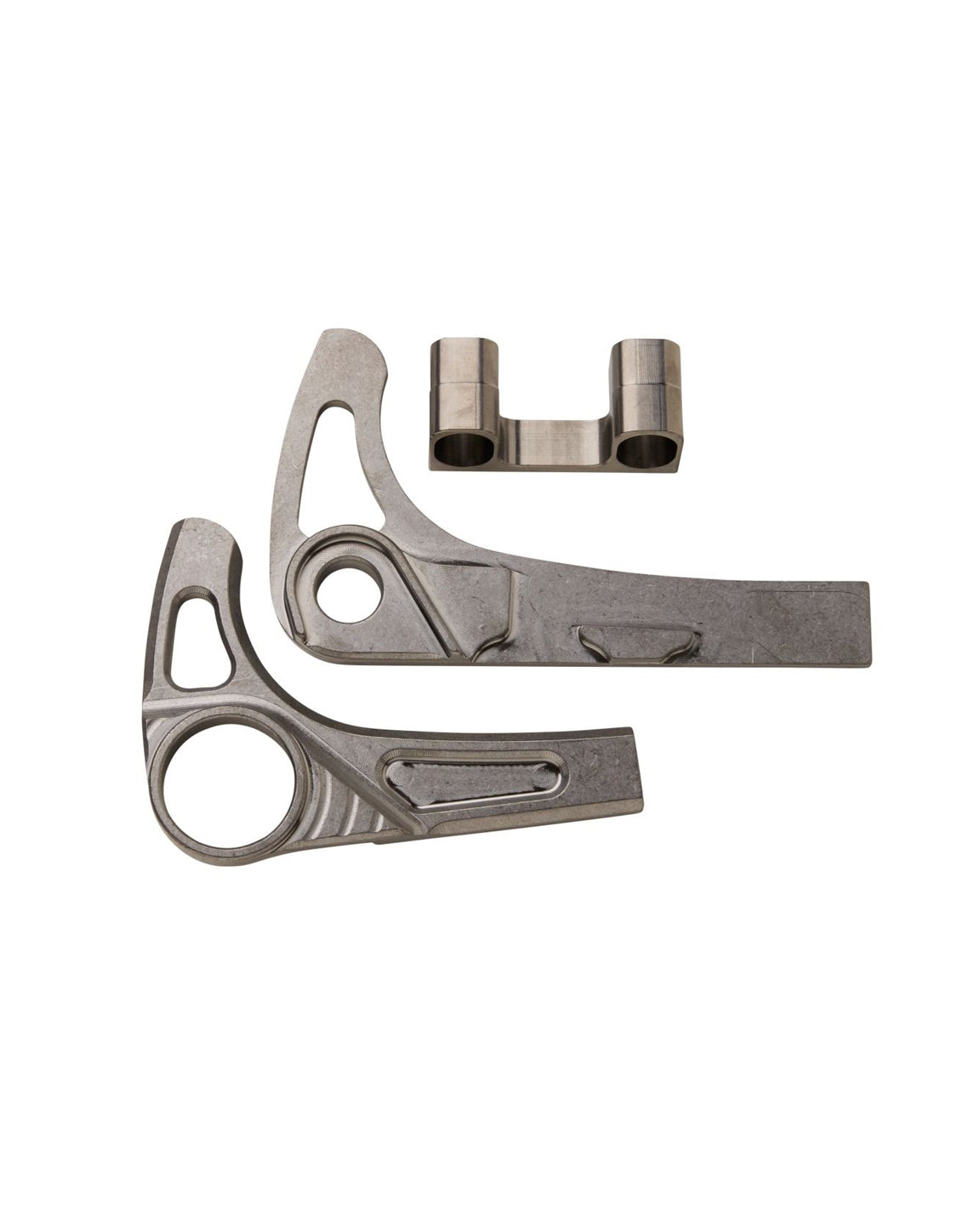

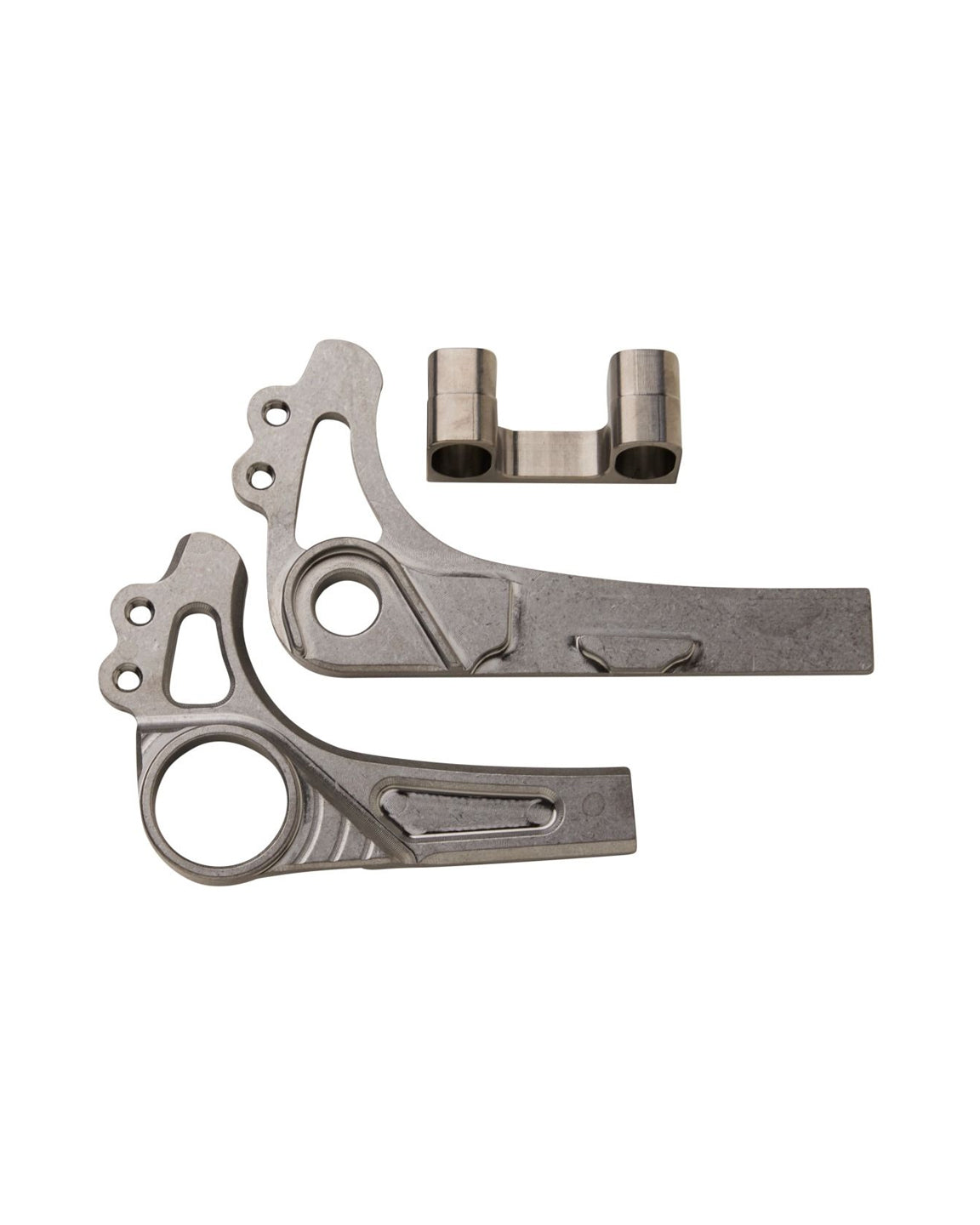

Dropout, Titanium, Plate SRAM UDH Flat Mount - Select Version

Material: 6/4 titanium, includes right and left frame components

Eyelets: 4 each M5 x .8

Application:

• SRAM Full Mount derailleurs and Universal Derailleur Hanger
  • Meets all SRAM specs
• Flat mount brake caliper for 140 mm rotor:
  • Does not require an adapter
  • Included with purchase
  • Can accommodate a 160 mm rotor with the use of an adapter (not available for purchase from PMW)
  • Mounting:
    • The brake caliper must be welded to the dropout after fabrication; locating features are integral
    • Mounting thickness at bolt: 10 mm

INFORMATION FROM SRAM:

"The interface for a full mount rear derailleur is the same for MTB and Road. The clearance model is the same for both with the exception that the Road has an added clearance surface (see image below). The surface is called "Road AXS RD on UDH hanger" (see red arrow in photo). Basically, this surface represents the worst case scenario for a specific combination of Road RD's with certain cassette sizes when used on a UDH hanger. Those combinations are a 36T Max RD with a 10-28T cassette or a 44T Max RD with a 10-36T cassette. During these two combinations, the RD is represented with this surface. Any other combination is ok and also full mount RD are ok and not relevant to this surface."

Purchase Separately:

• Bushing

  • Concentric: use a 0 mm offset bushing
  • Eccentric:
    • Select a 0.5 or 1.0 mm offset bushing
    • For 0.5 or 1.0 mm bushings use a 2 mm hex key to rotate the insert using the radial holes on the flange
  • The bushing is a structural part of the assembly and must be welded in
    • Once installed it is not meant to be consumer serviced
• SRAM Universal Derailleur Hanger
  • Axle hole is threaded M12 x1
• Skewer:

Item sold as 3 piece assembly.
