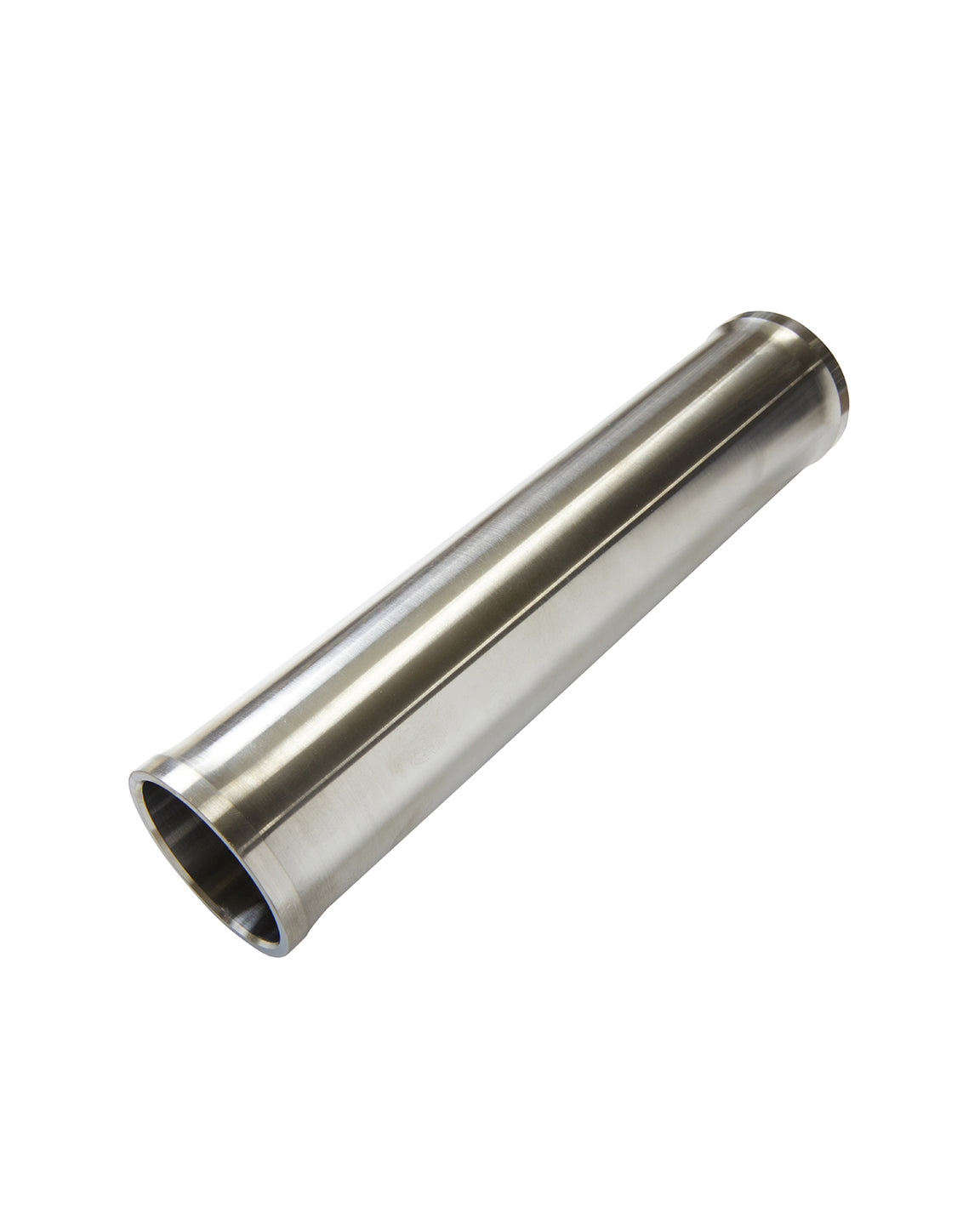

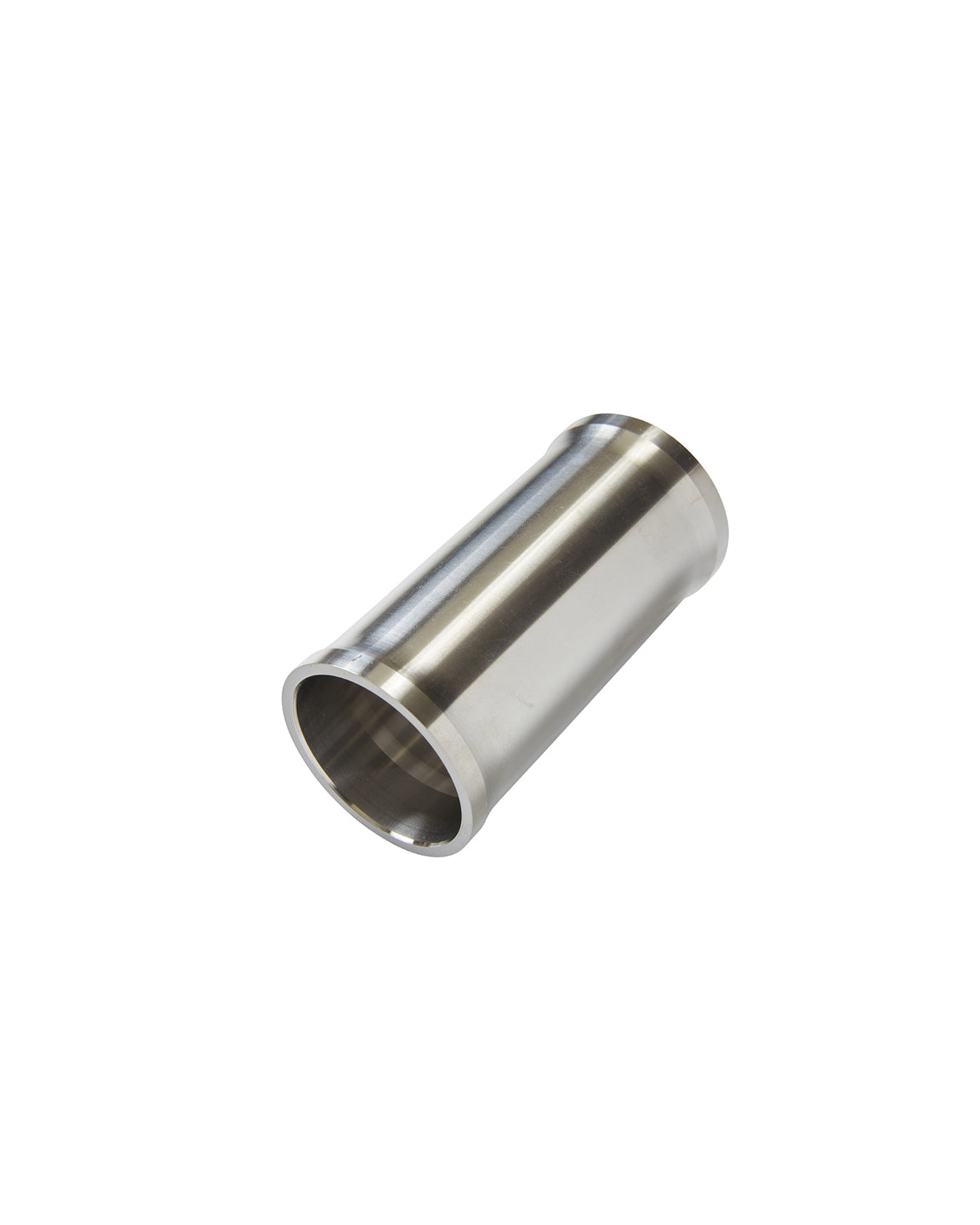

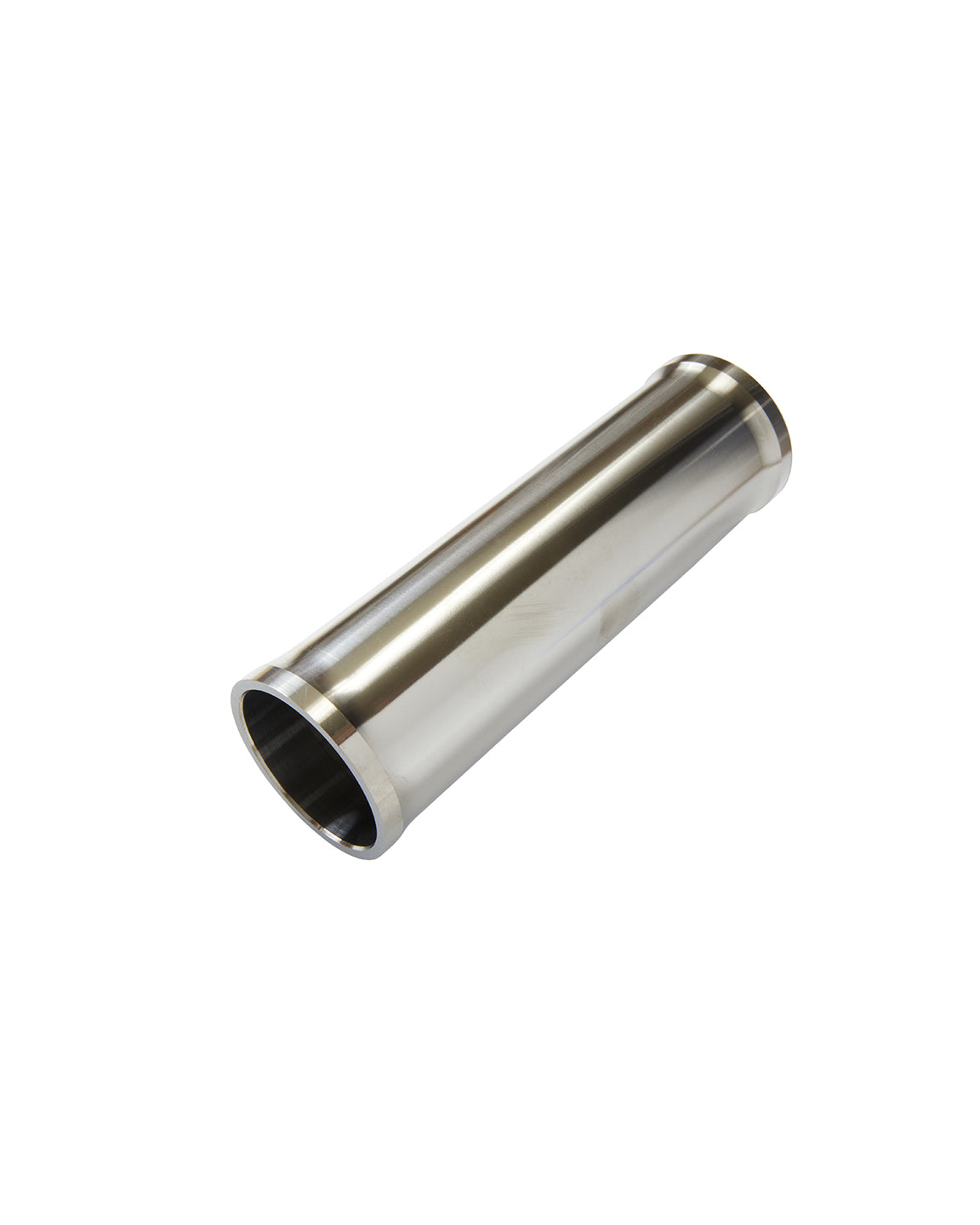

Head Tube, Titanium, EC44/EC44 - Select Length

Paragon
$89.95 USD
6 in stock

Note: Going forward, titanium EC44/EC44 head tubes will be available in 90mm-180mm lengths, in 10mm increments. All other lengths will be discontinued and replaced by a new, 3-piece system. All stock lengths have arrived and will be added to this page shortly.

Made in Richmond, California by Paragon Machine Works.

View Full Details
View Product Details

Applications:

  • Accepts all 44mm headset cups
  • Forks with 1-1/8" and 1-1/2" straight and tapered steerers, use appropriate headset

Material: 2.000" x .150 wall 3/2.5 titanium tubing

Length: Listed Length +0.25 mm (.010") - 0.5 mm (.020") / -0 to allow for facing after welding

Relief:

  • ID = 45mm
  • OD = Center relief is 1-7/8", ends are 50mm

Bearing Bores:

  • Supplied .5mm (.020") undersize to allow for post-weld reaming
  • Must be finished to size by the frame builder

Item sold individually.
